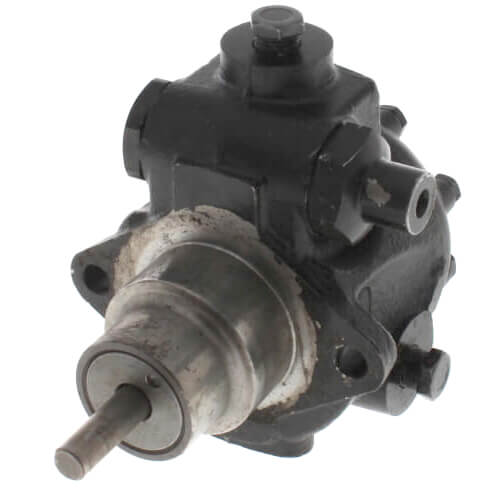

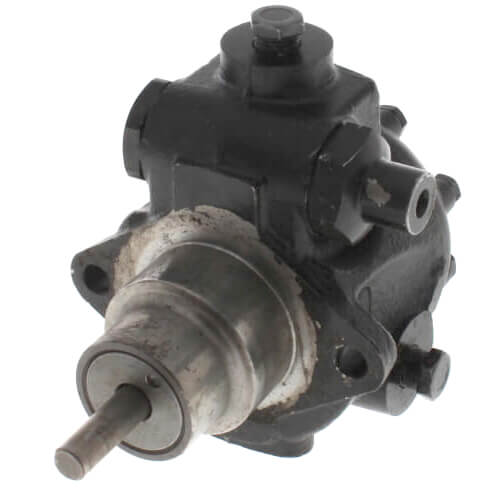

Suntec J4PCB10008M Type J Oil Pump 100 psi Clockwise Rotation Left Hand Nozzle 1725 or 3450 rpm

Product Description

The SUNTEC J4PCB10008M oil pump is designed for medium capacity oil burners ranging from 400 to 3000kW. This 1-stage oil pump incorporates a pressure regulating valve and can be used in one- or two-pipe installations. Its gear set draws oil through a built-in filter, transferring it to regulate oil pressure for the nozzle line. Excess oil is returned to the tank or suction port.

• 1 Stage Oil Pump for medium capacity oil burners (400 to 3000kW).
• Incorporates a pressure regulating valve and available with or without cut-off function.
• Features a gear set that draws oil through a built-in filter, regulating pressure to the nozzle line.

Product Highlights

Designed for medium capacity oil burners, this SUNTEC J4PCB10008M oil pump ensures regulated oil pressure with a built-in filter.

Product Information

Standard Information

• Brand: SUNTEC
• Manufacturer Part Number: J4PCB10008M

Technical Specifications

• Rated Speed: 1725, 3450 RPM
• Pump Type: 1 Stage Oil Pump
• Rotation: Left Hand
• Application: Heating
• Flow Rate: 22, 54 GPH
• Nozzle Location: Left Hand
• Max Pressure: 100 PSI
• Product Code: J4PCB10008M
• Operating Viscosity: 2-75 mm²/s (cSt)
• Oil Temperature Range: 32-194°F (0-90°C)
• Inlet/Return Pressure: Max 10 PSI
• Suction Height: Max 6.5 PSI vacuum
• Mounting Type: Flange (EN 225)
• Inlet/Return Connection Threads: 1/4" NPTF
• Nozzle Outlet Connection Threads: 1/8" NPTF
• Pressure Gauge Port Connection Threads: 1/8" NPSF
• Vacuum Gauge Port Connection Threads: 1/4" NPTF
