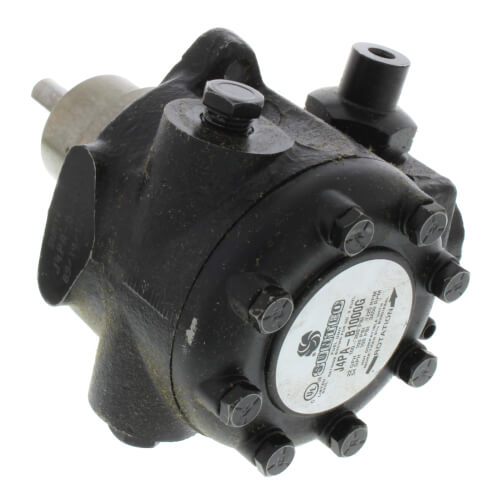

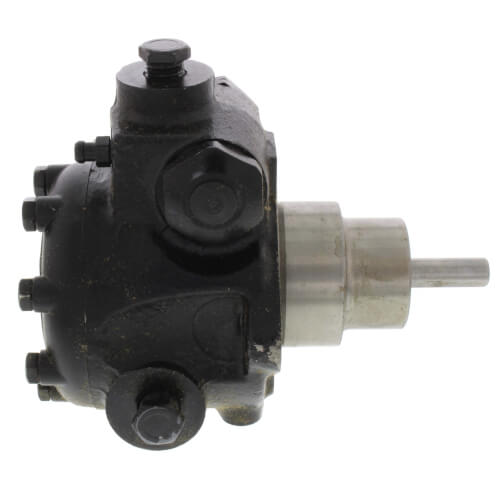

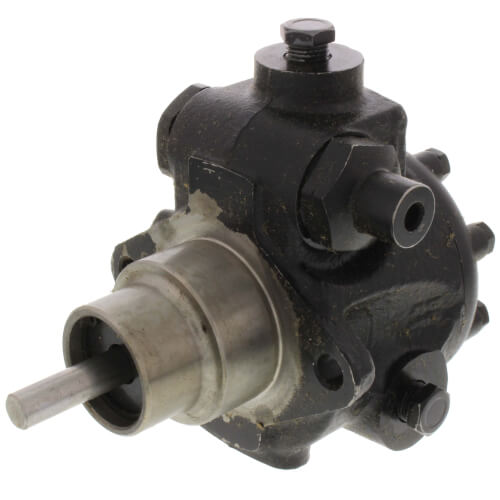

Suntec J4PAB10008M Type J Oil Pump Clockwise Rotation Right Hand Nozzle 100 psi 1725 or 3450 RPM

Product Description

The Suntec J4PAB10008M Type J oil pump is designed for medium capacity oil burners ranging from 400 to 3000 kW. This oil pump features a pressure regulating valve and is available with or without a cut-off function. The gear set efficiently draws oil from the tank through the built-in filter and transfers it to the valve that regulates the oil pressure to the nozzle line. For two-pipe installations, all excess oil is returned to the return line, while in one-pipe installations, it is redirected back to the suction port in the gear set.

• Compatible with oil burners from 400 to 3000 kW
• Includes a pressure regulating valve
• Built-in filter for efficient oil transfer

Product Highlights

Ideal for heating applications, this oil pump ensures efficient oil transfer and regulation.

Product Information

Standard Information

• Brand: Suntec
• MPN: J4PAB10008M

Technical Specifications

• Type: 1 Stage Oil Pump
• Rotation: R.H.
• RPM: 1725 or 3450
• Max Pressure: 100 psi
• Flow Rate (GPH): 22, 54
• Nozzle Location: R.H.
• Weight: 8.8 pounds
• Shipping Dimensions: 9 inches (L) x 9 inches (W) x 4 inches (H)
