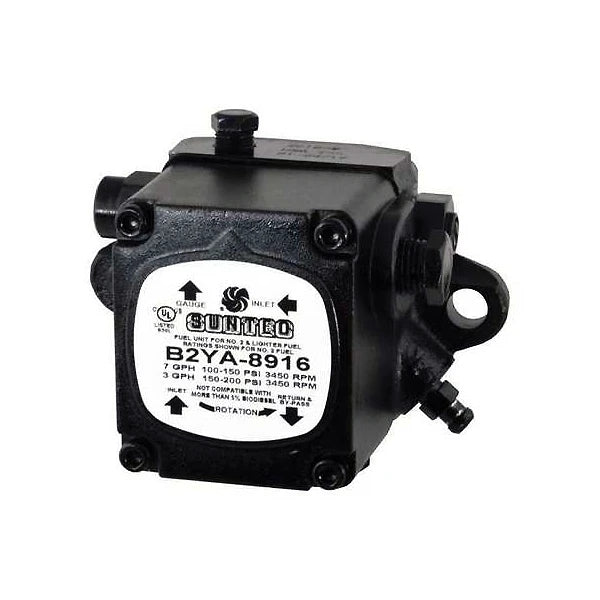

Suntec Industries B2YA-8916 Oil Burner Pump 7 GPM 3450

Product Description

The SUNTEC INDUSTRIES B2YA-8916 is a 2-stage oil burner pump designed for use on oil burners. It has a speed rating of 3450 RPM and a strainer and nozzle rating of 7 GPH at 100 PSI. Suitable for kerosene, No 1 or No 2 Fuel Oil, not compatible with fuel blends containing more than 5% biodiesel.

• 2-Pipe Installation up to 17 Inch Hg Vacuum
• Lift or Gravity Feed Application with 10 PSI Maximum Inlet/Return Pressure
• Factory-Set at 100 PSI

Product Highlights

The SUNTEC INDUSTRIES B2YA-8916 is a reliable 2-stage oil burner pump with right hand rotation and a right hand rotation nozzle port location.

Product Information

Standard Information

• Brand: SUNTEC INDUSTRIES
• Manufacturer Part Number: B2YA-8916
• Country of Origin: US

Technical Specifications

• Manufacturer Part Number: B2YA-8916
• Item: Pump, 2-Stage
• Used On: Oil Burner
• Speed Rating: 3450 RPM
• Strainer and Nozzle Rating: 7 GPH at 100 PSI
• Category: HVAC/R & Fans
• Features/Benefits: 2-Pipe Installation up to 17 Inch Hg Vacuum; Lift or Gravity Feed Application with 10 PSI Maximum Inlet/Return Pressure; Factory-Set at 100 PSI
• Manufacturer Name: Suntec Industries
• Series/Model: B-8000
• Brand: SunTec
• Exterior Finish: Stainless Steel
• Inlet Connection Type: Threaded
• Outlet Connection Type: Threaded
• Number of Ports: 1
• Thread Type: Threaded
• Material Type: Stainless Steel
• Specification Met: ASME B16.34
• Model Number: B2YA8916
• Manufacturer: Suntec Industries, Inc.
• GPH / Rated Speed: 7 GPH / 3450 RPM
• Rotation: Right Hand Rotation
• PSI: 100-150 PSI
• Gauge Port: 1/8 gauge port
• Stages: 2
• Flow Rate: 7 gph
• Speed: 3450 rpm
• Pressure: 100 to 150 psi
• Type: Oil Burner Fuel Pump
• Compatible Model: Sundstrand , Suntec , Sunteck
• Voltage: N/A
• Compressor Stages: Two Stage
