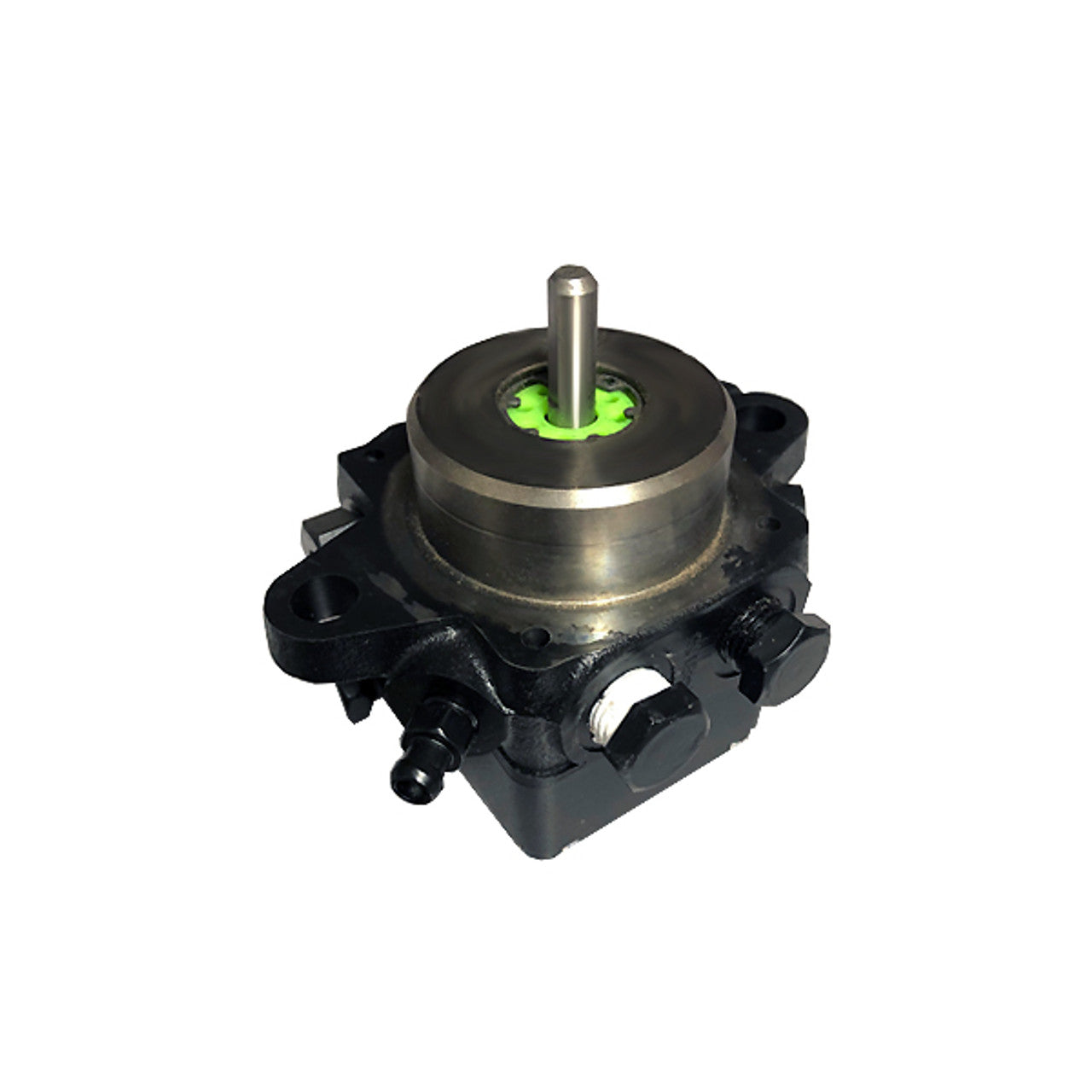

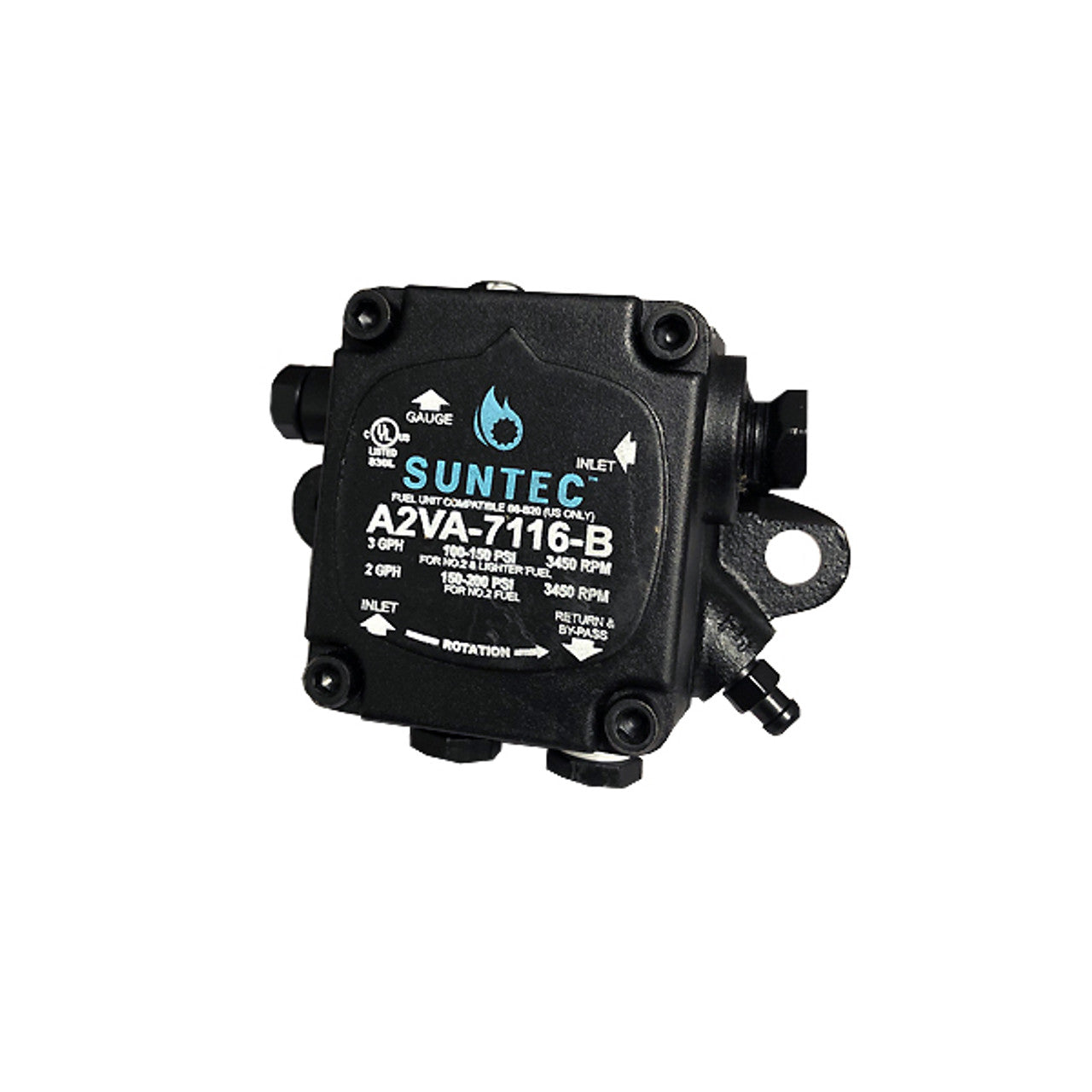

Suntec A2VA-7116B Fuel Oil Pump

Product Description

The Suntec Industries A2VA-7116B is a single-stage fuel oil pump designed for a variety of applications. This pump offers a positive displacement involute gear set and includes controlling valves. It accommodates both single and two-pipe installations and can be mounted in any position. This model is suitable for No. 2 or No. 1 fuel oil, kerosene, and biodiesel B20.

• Flow Rate: 3 gallons per hour
• Speed: 3450 RPM
• Maximum Pressure: 100 PSI

Product Highlights

Reliable and adaptable, this fuel oil pump is engineered for efficient performance in various heating systems.

Product Information

Standard Information

• Brand: Suntec
• MPN: A2VA-7116B

Technical Specifications

• Maximum Flow Rate: 3 gallons per hour
• Maximum Pressure: 100 PSI
• Maximum Speed: 3450 RPM
• Shaft Diameter: 5/16 inches
• Inlet Size: 1/4 FPT
• Outlet Size: 1/8 FPT
• Gauge Port: 1/8
• Pump Class: Fuel
• Pump Connection: Threaded
• Pump Capacity: 3 gallons per hour
• Working Pressure: 100 PSI
• Motor Phase: 1 Ph
• Motor Hertz: 60 Hz
• Motor RPM: 3450 RPM
