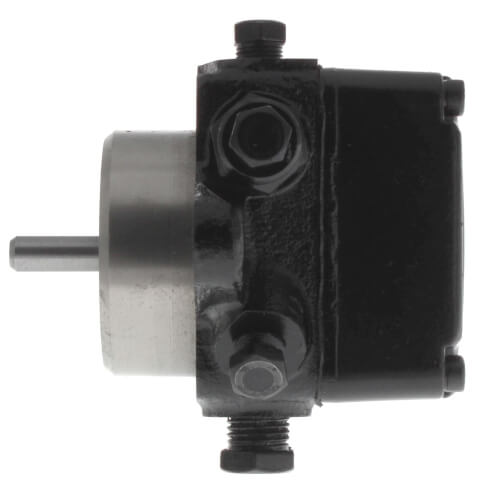

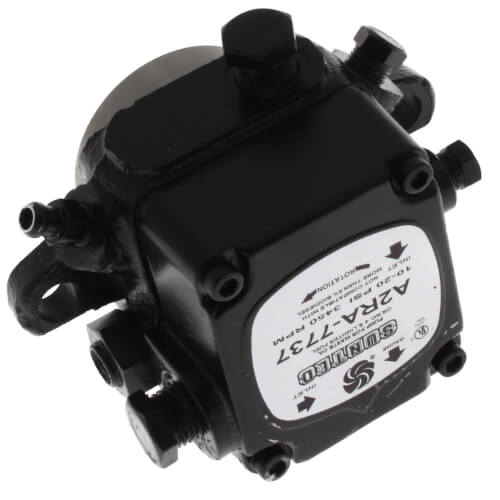

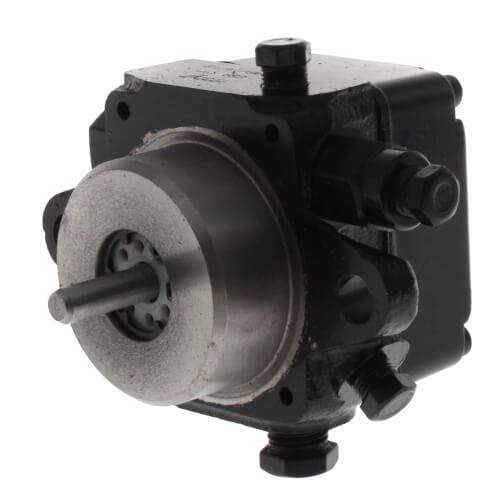

Suntec A2RA7737 Single Stage Waste Oil Pump 3450/1725 RPM

Product Description

Suntec A2RA7737 is a single stage waste oil pump designed for various heating applications. This model operates at both three thousand four hundred fifty RPM and one thousand seven hundred twenty-five RPM, making it versatile for different settings.

• Operating range of 10-20 psi waste oil
• Suitable for No. 1 and No. 2 fuel oils or kerosene
• Can be mounted in any position for ease of installation

Product Highlights

This pump is optimal for both lift and gravity feed applications, providing reliable performance under varying conditions.

Product Information

Standard Information

• Model: A-7000 Single-Stage Fuel Units
• Operating Pressures: Factory-set at 100 psi, adjustable between 100-150 psi at 3450 RPM, 100-135 psi at 1725 RPM
• Installation Types: Single-pipe installations to six inches of mercury vacuum, two-pipe installations to twelve inches of mercury vacuum

Technical Specifications

• Weight: 3.405 lbs
• Shipping Dimensions: 5.25 inches (Depth) x 4.45 inches (Width) x 4.4 inches (Height)
• Flow Rate: 2.5 GPH
• Rotation: Right Hand
• Nozzle Location: Right Hand
