Sunbelt Marketing fs3/4npt Flood Stop Valve 3/4 in Npt

Product Description

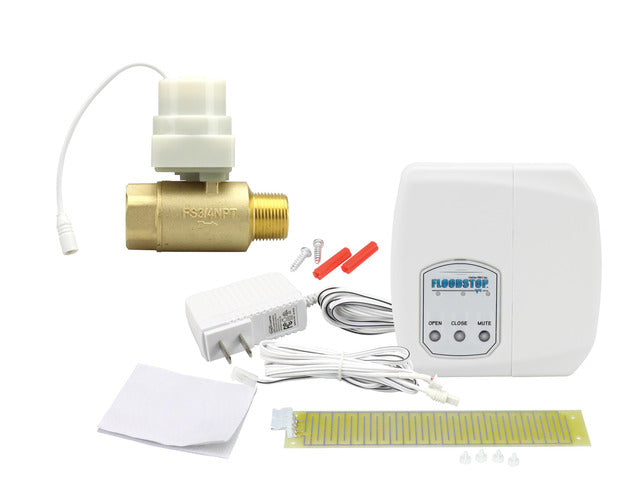

The SUNBELT MARKETING fs3/4npt is an automatic shutoff valve designed to protect water heater installations from flood damage caused by leaks or supply line failures. The valve installs inline between the water heater cold-water supply and the existing manual shutoff valve, remaining fully open under normal conditions. A water and leak sensor is positioned at the base of the water heater. When moisture contacts the sensor, the valve closes automatically and sounds an audible alarm, stopping water flow before significant flooding can occur. The fs3/4npt is certified lead free in compliance with federal and state lead-free standards.

This valve is suited for residential and light commercial water heater installations where leak detection and automatic shutoff are required. It is commonly installed by licensed plumbers during new water heater setups or as a retrofit to existing installations. The 3/4 inch NPT connection matches the standard supply inlet found on most tank-style water heaters. The included sensor is placed on the floor at the base of the unit to detect standing water at the earliest opportunity.

Key Features

• Automatic valve closure upon water or leak detection at the sensor
• Audible alarm sounds immediately when the sensor is triggered
• 3/4 inch NPT connection for compatibility with standard water heater supply inlets
• Valve remains fully open under normal operating conditions — no flow restriction
• Certified lead free per federal S. 3874 and California AB1953 requirements

Compatibility

Designed as an OEM-style replacement and new-installation shutoff solution for residential tank-style water heater supply lines using 3/4 inch NPT fittings.

Installation Notes

Installation is typically performed by a licensed plumber. Shut off the main water supply and drain pressure from the water heater supply line before beginning work. The valve installs between the cold-water supply line and the existing manual shutoff valve, and the sensor lead must be routed to the floor at the base of the water heater. Follow all applicable local plumbing codes, including IPC guidelines, when making connections.

Technical Specifications

• Connection Size: 3/4 inches NPT
• Lead Free Certification: S. 3874, AB1953
• UPC: 10815361000210

Standard Information

• Brand: SUNBELT MARKETING
• Manufacturer Part Number: fs3/4npt
