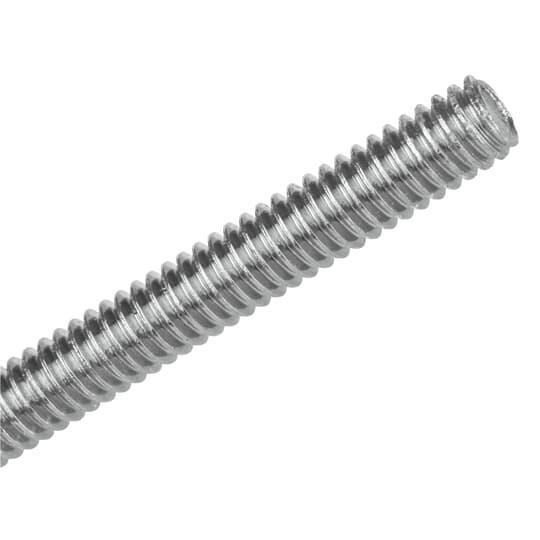

Sunbelt Marketing 100000291 Hanger Rod 3/8-16 6 Foot Steel

Product Description

The SUNBELT MARKETING 100000291 is a continuous thread, right-hand hanger rod designed for suspending pipe, conduit, ductwork, and mechanical equipment from overhead structural supports. Manufactured from steel, it features a uniform 3/8-16 thread pattern running the full 6-foot length, allowing field cutting to any required dimension without losing thread continuity. This type of all-thread rod is a standard component in commercial and residential mechanical, plumbing, and electrical installations wherever suspended support is required.

This hanger rod is suited for a wide range of trade applications including HVAC duct hangers, pipe suspension systems, electrical conduit support, and general mechanical equipment mounting. The 6-foot overall length accommodates most standard ceiling-height installations and can be cut down with a hacksaw or rod cutter to match specific drop requirements on the job site. It is commonly used with beam clamps, clevis hangers, channel strut, and threaded rod couplings.

Key Features

• Continuous 3/8-16 right-hand thread along the full 6-foot length for maximum field flexibility
• Steel construction provides strength and rigidity for suspended load applications
• Full-length threading allows field cutting without loss of usable thread at cut end
• Compatible with standard 3/8-inch threaded hardware including nuts, couplings, and hanger components
• Right-hand thread orientation matches the vast majority of standard fastening hardware

Compatibility

Designed as a standard 3/8-16 continuous thread hanger rod for use with compatible threaded hanger hardware, beam clamps, strut channel nuts, and rod couplings in mechanical, plumbing, and electrical suspension applications.

Installation Notes

Installation is typically performed by licensed plumbers, HVAC mechanics, or electricians depending on the suspended system. Support spacing and load requirements should be followed per applicable codes including IFGC, IPC, and NEC as appropriate to the trade. Use a thread die or file to clean cut ends before installing nuts or couplings to avoid cross-threading. Always verify the structural capacity of the overhead attachment point before loading the rod.

Technical Specifications

• Thread Size: 3/8-16
• Thread Orientation: Right-hand
• Thread Type: Continuous (all-thread)
• Overall Length: 6 feet
• Material: Steel

Standard Information

• Brand: SUNBELT MARKETING
• Manufacturer Part Number: 100000291
