Sunbelt Marketing 100000290 Threaded Hanger Rod 3/8-16 10 Ft

Product Description

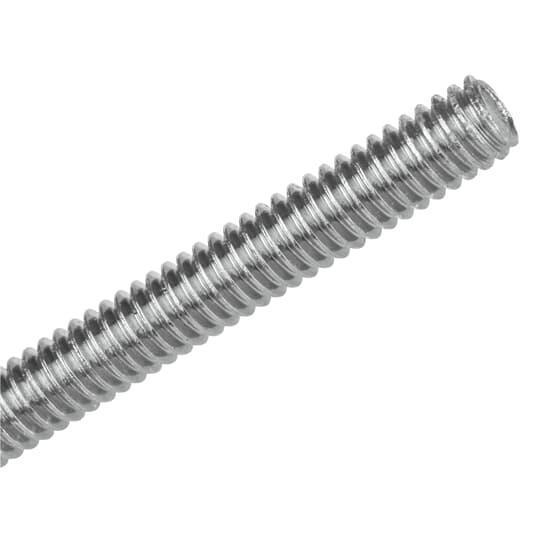

The SUNBELT MARKETING 100000290 is a continuous threaded hanger rod designed for suspension and support applications in mechanical, plumbing, and HVAC installations. Threaded the full length with a 3/8-16 UNC thread form, this rod provides flexible cut-to-length capability so installers can size it to the job without retapping. At 10 feet overall length, it accommodates a wide range of drop distances for pipe hangers, strut assemblies, and equipment supports. The gold galvanized finish provides corrosion resistance suitable for typical indoor mechanical room and plenum environments. Licensed tradespeople and general contractors use this rod as a standard component in suspended piping and ductwork support systems.

This threaded hanger rod is used in residential and commercial construction for suspending pipe, conduit, HVAC ductwork hangers, fan coil units, and similar mechanical equipment from structural ceilings and beams. It pairs with standard 3/8-16 hex nuts, coupling nuts, clevis hangers, and beam clamps available through standard trade supply channels. The full-thread design eliminates the need for field tapping and allows mounting hardware to be positioned anywhere along the rod length.

Key Features

• Full-length 3/8-16 UNC thread for maximum positioning flexibility
• 10-foot overall length allows field cutting to required drop length
• Steel construction provides structural rigidity for suspension loads
• Gold galvanized finish adds corrosion resistance for mechanical environments
• Compatible with standard 3/8-16 hanger hardware including nuts, couplings, and clevis hangers

Compatibility

Designed for use with standard 3/8-16 UNC threaded hanger hardware in suspended piping, conduit, and HVAC support applications.

Installation Notes

Installation is typically performed by licensed plumbers, HVAC technicians, or general contractors following IPC or IFGC support spacing requirements as applicable. Cut the rod to length using a hacksaw or abrasive cutoff tool and chase the cut end with a die to restore thread profile before installing nuts. Always verify that the overhead anchor point, beam clamp, or insert is rated for the intended load before suspending equipment. Wear appropriate eye and hand protection when cutting threaded rod.

Technical Specifications

• Thread Size: 3/8-16 UNC
• Overall Length: 10 feet
• Material: Steel
• Finish: Gold Galvanized
• UNSPSC Code: 31161618

Standard Information

• Brand: SUNBELT MARKETING
• Manufacturer Part Number: 100000290
