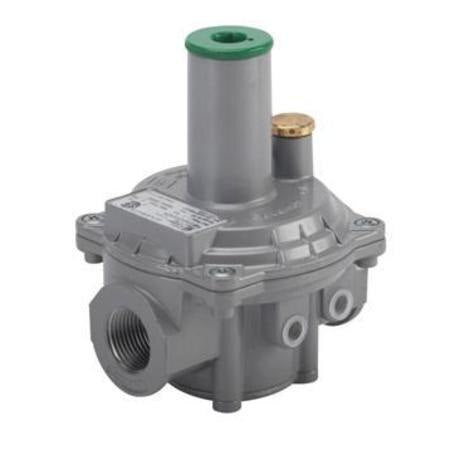

Sunbelt F31052-2BS Governor Line Pressure Regulators With Filter 3/4

Product Description

The Sunbelt F31052-2BS is a governor line pressure regulator designed for fluid control systems. This product features a filter to ensure clean operation and is suitable for both indoor and outdoor installations.

• Positive 100% bubble-tight lock-up at no flow conditions.
• CSA approved external vent limiter eliminates the need for a vent line.
• Includes inlet and outlet test ports with an internal filter.

Product Highlights

This line pressure regulator is essential for maintaining constant pressure in pressure control systems. It is compatible with various applications requiring precise pressure regulation.

Product Information

Standard Information

• Brand: Sunbelt
• Part Number: F1206

Technical Specifications

• Connections: 3/4 NPT
• Capacity: 500 to 1 Turndown
• Input(s): Inlet pressures from 3 w.c. to 2 PSIG CSA approved (Max inlet 7.25 PSIG for non-CSA applications)
• Output(s): Black spring, 6 to 14 w.c. included, other spring ranges available
• Maximum Emergency Inlet Exposure Pressure: 80 PSIG
• Vent size: 1/4 NPT with integral vent limiter
• Temperature range: -40 Deg F to 150 Deg F (-40 Deg C to +65 Deg C)
