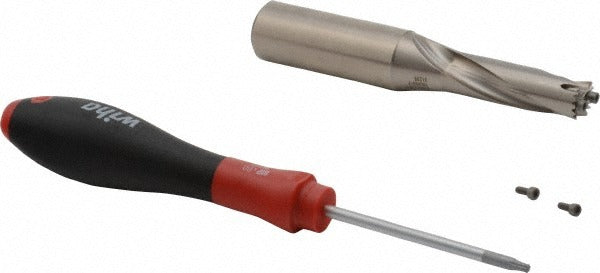

Sumitomo 5L00W09 Replaceable-tip Drill 13.5-14.5mm

Product Description

The SUMITOMO 5L00W09 is a replaceable-tip drill body designed for precision hole-making in metal cutting applications. Built from steel, this SMD-series drill accepts SMDT insert tips and features through-coolant delivery to manage heat and chip evacuation at the cutting zone. The shank diameter is 0.75 inches (straight-cylindrical), overall length is 4.527 inches, and the tool supports a maximum drill depth of 2.008 inches at a 3xD depth-to-diameter ratio. It is intended for use in machining centers and CNC lathes where repeatable, close-tolerance drilling is required.

The 5L00W09 covers a drill diameter range of 13.5 to 14.5 mm (0.5315 to 0.5709 inches), making it suitable for applications that require diameter adjustability through insert tip selection. The straight-cylindrical shank seats in standard SMDH-style toolholders. Through-coolant capability makes this body well-suited for deep-hole work in steel, cast iron, and similar ferrous materials where chip packing and thermal buildup are primary concerns. Machinists and CNC programmers in production and job-shop environments are the primary users of this tool.

Key Features

• Replaceable SMDT insert tips allow diameter adjustability from 13.5 mm to 14.5 mm without replacing the body
• Through-coolant design delivers cutting fluid directly to the tip for improved chip evacuation and tool life
• 3xD depth-to-diameter ratio supports a maximum drill depth of 2.008 inches
• Straight-cylindrical shank at 0.75 inches diameter fits SMDH-style toolholders
• Flute length of 2.527 inches and body length of 2.527 inches provide adequate chip clearance
• SMD series construction in steel for rigidity and durability in production drilling cycles

Compatibility

Designed for use with SMDT-style replaceable insert tips and SMDH-style toolholders. No specific machine model compatibility was provided by the manufacturer for this SKU.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Ensure the machine spindle is fully stopped and the tool carousel or turret is locked out before mounting or removing the drill body. Confirm the SMDH-style toolholder bore and retention mechanism are clean and free of chips before seating the shank. Torque insert clamping screws per the insert manufacturer specification; do not estimate clamping torque without referencing the insert documentation.
