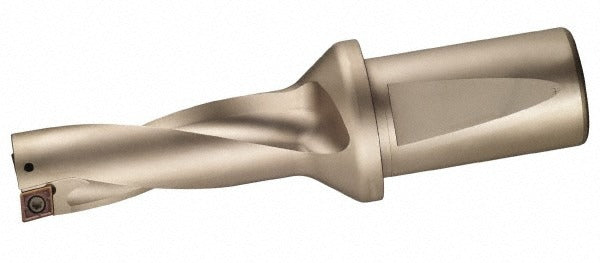

Sumitomo 2A00W3C Indexable Insert Drill 1.437in 3xd

Product Description

The SUMITOMO 2A00W3C is a 3xD indexable insert drill from the SumiDrill series, designed for general-purpose drilling in metalworking and machining applications. It accepts two WDXT-style inserts and delivers a maximum drill diameter of 1.437 inches with a maximum drill depth of 4.47 inches. The 1.5-inch whistle notch shank provides secure tool holding in compatible drill bodies. Coolant-through capability is built in, supporting chip evacuation and tool life in production environments. This drill body is installed by machinists and tooling specialists in CNC machining centers and manual boring mills.

The 2A00W3C is suited for general-purpose hole-making in production and job-shop environments. The 3xD depth-to-diameter ratio makes it appropriate for moderate-depth bores in ferrous and non-ferrous materials. The whistle notch shank fits standard WDX-style drill holders. Coolant-through delivery is compatible with machine spindles equipped for internal coolant supply, helping maintain cutting temperatures and flush chips from the bore during operation.

Key Features

• Maximum drill diameter of 1.437 inches with 3xD depth-to-diameter ratio
• Maximum drill depth of 4.47 inches and flute length of 4.47 inches
• Accepts two WDXT 094008 indexable inserts for cost-effective cutting edge replacement
• 1.5-inch whistle notch shank with a body length of 5.415 inches and shank length of 3.0 inches
• Coolant-through design with 1/4-18 NPT coolant hole thread for internal coolant delivery
• Right-hand cutting direction; general-purpose tool performance in steel and similar materials

Compatibility

Compatible with WDX drill style holders and WDXT 094008 indexable inserts. Designed for use in machine spindles capable of accepting a 1.5-inch whistle notch shank with internal coolant supply.

Installation Notes

Installation and insert indexing should be performed by a qualified machinist with the machine powered down and locked out per facility lockout/tagout procedures. Ensure the whistle notch shank is properly seated and clamped in the tool holder before operation. Verify coolant line connections are secure before enabling through-spindle coolant. Do not exceed the rated maximum drill depth or diameter for this tool body.
