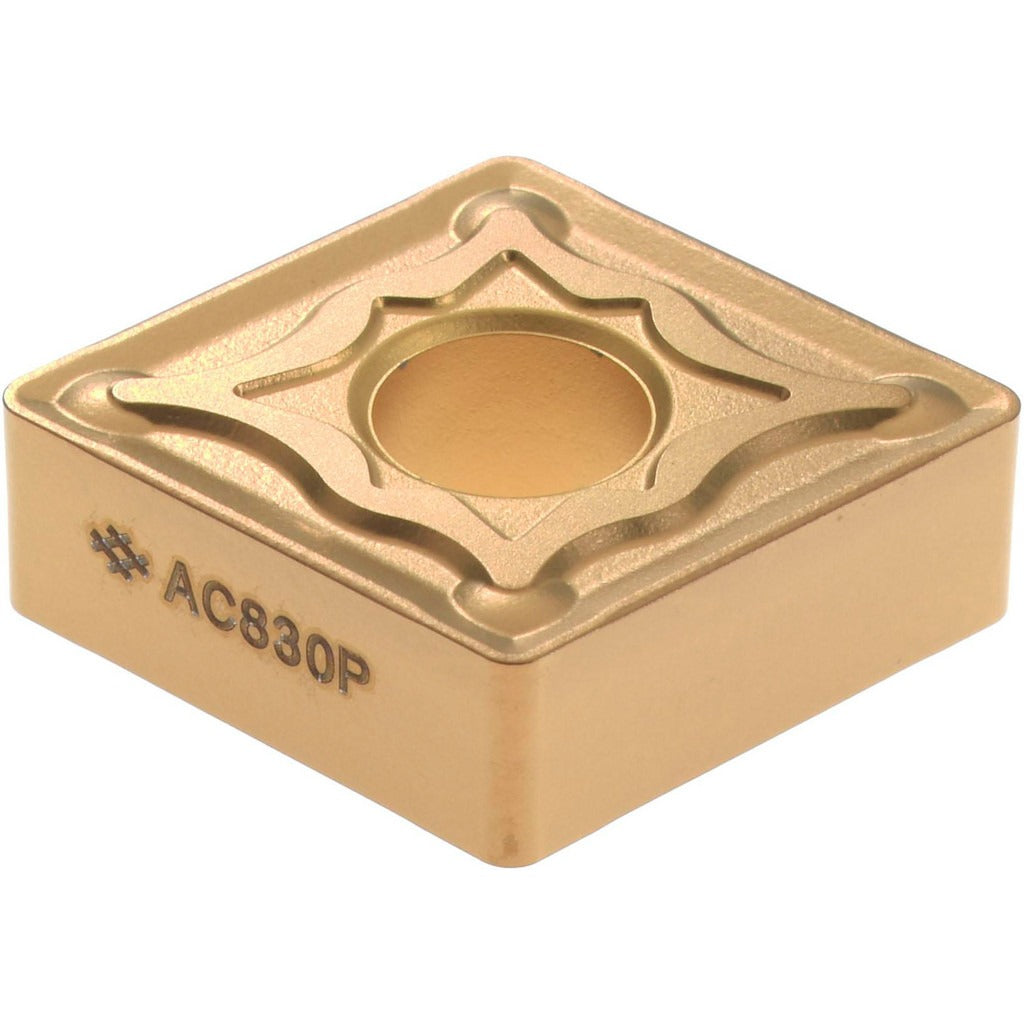

Sumitomo 19RBAVH Turning Insert CNMG432 AC830P Carbide

Product Description

The SUMITOMO 19RBAVH is a CNMG432EUX AC830P grade coated carbide turning insert designed for external and internal turning operations on CNC lathes and turning centers. It features an 80-degree diamond (rhombic) insert shape with a neutral hand orientation, a 0.5-inch inscribed circle, and a 0.0313-inch corner radius. The AC830P grade uses a CVD coating process and delivers a balance of wear resistance and toughness suited for steel and stainless steel workpieces. The EUX chip breaker geometry is rated for roughing and medium machining applications. Licensed machinists and CNC operators working in job shop or production environments are the primary installers of this insert.

This insert is intended for turning steel (ISO P) and stainless steel (ISO M) workpiece materials at moderate to heavy material removal rates. The EUX chip breaker handles interrupted cuts and variable depths of cut encountered in roughing passes while remaining capable through medium finishing passes. Typical applications include shaft turning, facing, and profiling on conventional and Swiss-style CNC turning equipment where a negative rake, clamped or pin-lock toolholder in the CNMG style is in use.

Key Features

• AC830P CVD-coated carbide grade provides moderate wear resistance with high toughness for steel and stainless steel
• 80-degree diamond insert shape (ANSI code CNMG432, ISO code CNMG120408) with negative rake and negative side clearance
• EUX chip breaker geometry supports roughing and medium machining chip control
• 0.0313-inch corner radius reduces edge chipping risk during interrupted or variable-depth cuts
• Neutral hand orientation fits both left-hand and right-hand CNMG-style toolholders
• Meets ANSI and ISO 13399 insert standards for dimensional interchangeability

Compatibility

Designed for use in CNMG-style negative-rake turning toolholders that accept a 432 (ANSI) or 120408 (ISO) size insert retained by clamp or pin-lock methods. Compatible with material grades C5, C5A, and C6 toolholder systems. Suitable for primary workpiece material codes P (steel) and M (stainless steel).

Installation Notes

CNC machinists and tool-room technicians install this insert. Power down the machine and lock out the spindle before changing inserts. Seat the insert fully against the toolholder pocket and confirm the clamp or pin is fully engaged before resuming operation. Do not overtighten the clamp screw beyond the toolholder manufacturer specification, and inspect the pocket for chips or debris that could prevent proper seating and cause premature edge failure.
