Sumitomo 19R5CHU Carbide Turning Insert VNMG330.5EEF AC6020M

Product Description

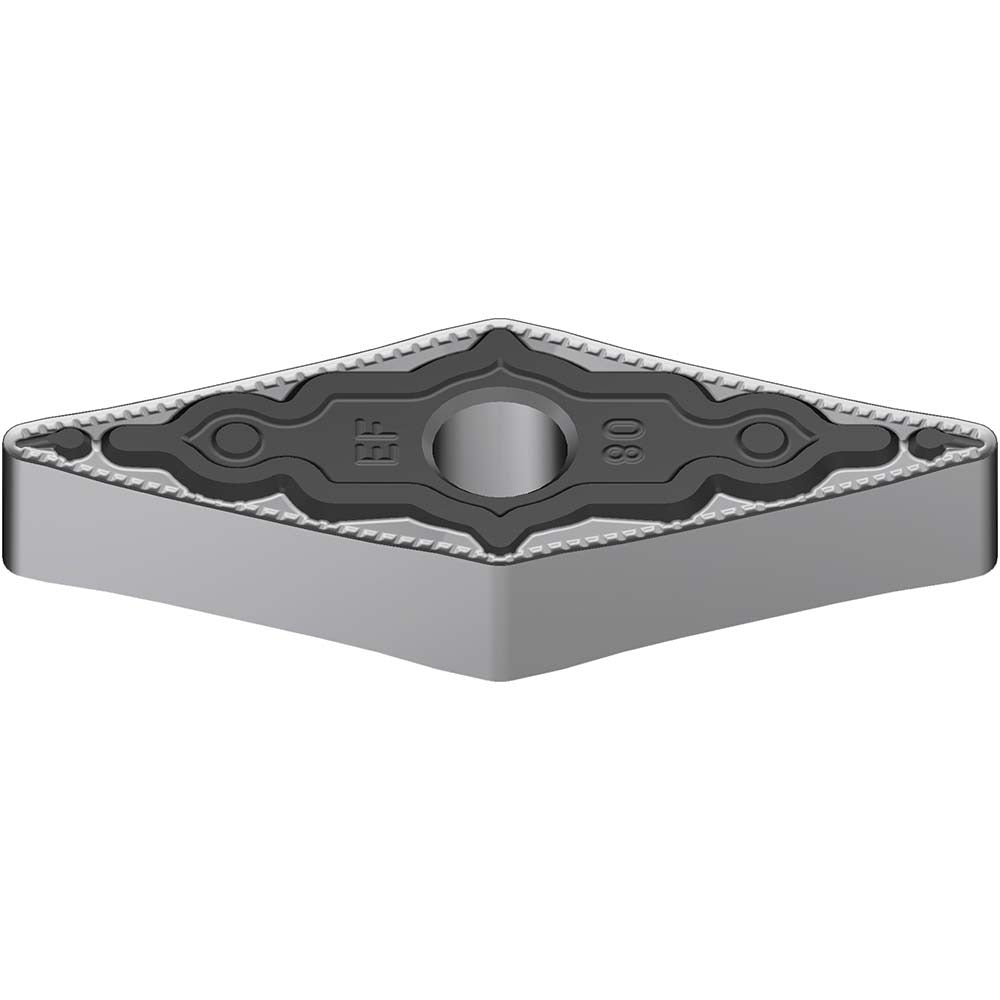

The SUMITOMO 19R5CHU is a VNMG330.5EEF carbide turning insert coated with Absotech Platinum finish via CVD process and graded AC6020M. It is engineered for finishing operations on stainless steel workpieces, where high wear resistance and controlled toughness are required. The insert features a 35-degree diamond (rhombic) shape, a neutral hand orientation, a 0.0078-inch corner radius, and a negative rake and clearance geometry. It seats via pin and screw holding methods. Machinists and CNC lathe operators use this insert in precision turning applications where surface finish quality and tool life on difficult materials are the primary concerns.

This insert is suited for finishing cuts on stainless steel and other M-group materials in both production and job-shop CNC turning environments. The EEF chip breaker geometry is optimized for light depths of cut and fine feed rates typical of finishing passes. The AC6020M grade targets M20 material classification, covering a range of austenitic and ferritic stainless steels. Suitable for use on lathes and turning centers where VNMG-style toolholders with pin and screw clamping are employed.

Key Features

• Absotech Platinum CVD coating delivers high wear resistance on stainless steel
• EEF chip breaker geometry optimized for finishing operations with fine feeds
• 35-degree diamond (V) insert shape for access in tight profiling situations
• Negative rake and 0-degree relief angle for rigid, stable cutting performance
• Neutral hand orientation for versatile toolholder compatibility
• Meets ANSI and ISO 13399 standards; ISO code VNMG160402N-EF

Compatibility

Designed for use in VNMG-style toolholders that accept pin and screw clamping with an ANSI size code of 330.5 (ISO size code 160402). Compatible with toolholders in the VN series. Primary workpiece material is stainless steel (ISO material code M, grade M20).

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Power down and lock out the machine before seating or replacing inserts. Ensure the toolholder pocket and seating surfaces are clean and free of chips before clamping the insert. Do not exceed the toolholder manufacturer's specified clamping torque for the pin and screw holding system.
