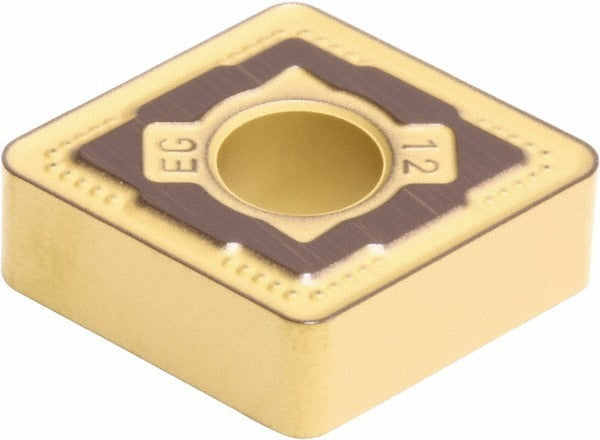

Sumitomo 19PWCGM CNMG543EEG AC630M Carbide Turning Insert

Product Description

The SUMITOMO 19PWCGM is a CNMG543EEG-style solid carbide turning insert manufactured to ANSI and ISO 13399 standards. Designated grade AC630M with a CVD-applied Al2O3 coating, this insert is engineered for turning operations on steel and stainless steel workpieces. It features an 80-degree diamond insert shape, a 5/8-inch inscribed circle, a 3/64-inch corner radius, and a 1/4-inch insert thickness. The neutral rake and neutral hand geometry make it suitable for a broad range of turning applications. Machinists and CNC operators working in production or job-shop environments will find this insert compatible with standard CNMG toolholders using clamp and pin holding methods.

This insert is applied in external and internal turning operations where consistent surface finish and dimensional accuracy are required. The AC630M grade with Al2O3 CVD coating is well-suited for machining carbon steel and stainless steel at moderate to high cutting speeds. The EEG chip breaker geometry is designed to manage chip flow effectively during continuous turning cuts. It is commonly used in CNC lathes and turning centers in automotive, aerospace, and general machining environments where reliable tool life on ferrous materials is a priority.

Key Features

• Solid carbide construction with CVD-applied Al2O3 coating for wear and heat resistance
• 80-degree diamond insert shape (ANSI code CNMG543EEG, ISO code CNMG160612N-EG)
• 5/8-inch (0.6250 inch) inscribed circle for precise seating in standard CNMG toolholders
• 3/64-inch (0.0469 inch) corner radius for balanced edge strength and surface finish
• EEG chip breaker geometry for controlled chip evacuation in steel and stainless steel turning
• Neutral rake and neutral hand designation for versatile application across multiple toolholder orientations

Compatibility

Designed as an OEM-style replacement and standard production insert for CNMG-style toolholders using clamp and pin holding methods with a 1/4-inch hole diameter. Rated for primary application on steel and secondary application on stainless steel workpieces.
