Sumitomo 19PWAPA Turning Insert CNMG-432 Esu AC630M Carbide

Product Description

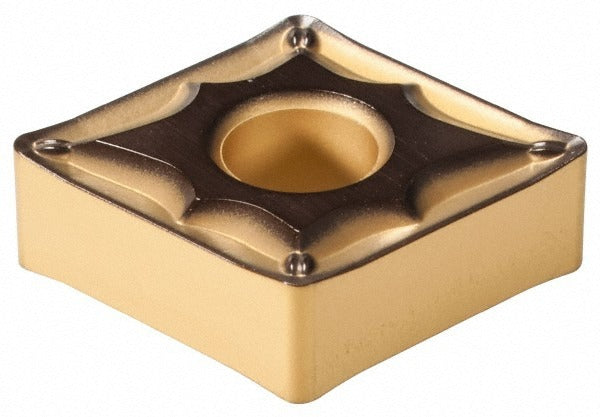

The SUMITOMO 19PWAPA is a CNMG-432 indexable turning insert designed for precision metal cutting in CNC lathe and turning center applications. It carries the AC630M grade designation, featuring a CVD-applied aluminum oxide (Al2O3) coating over a solid carbide substrate. The insert follows an 80-degree diamond (rhombic) geometry with a neutral hand orientation and a negative side clearance, classified under ANSI code CNMG432 and ISO code CNMG120408. With a rake angle of 13 degrees and the ESU chip breaker geometry, this insert is engineered for finishing and light machining passes where surface finish and edge stability are the priorities.

This insert is intended for machining stainless steel and other ISO M-group workpiece materials. The ESU chip breaker promotes efficient chip evacuation at lighter depths of cut and lower feed rates, making it well suited for tight-tolerance finishing operations on austenitic and duplex stainless steel components. The AC630M grade balances moderate wear resistance with sufficient toughness to handle the work-hardening behavior common in stainless alloys. It is installed in tool holders using a clamp and pin holding method, compatible with standard CNMG-style pockets.

Key Features

• AC630M grade with CVD Al2O3 coating for moderate wear resistance and toughness on ISO M materials
• ESU chip breaker geometry optimized for finishing and light machining passes
• 80-degree diamond insert shape (ANSI CNMG432 / ISO CNMG120408N-SU) with neutral hand orientation
• Negative side clearance and positive rake angle (13 degrees) for consistent edge engagement
• Clamp and pin holding method for secure seating in compatible CNMG tool holders
• Meets ANSI and ISO 13399 standards for interchangeability and tooling system compatibility

Compatibility

Designed as an OEM-style indexable replacement insert for CNMG-style turning tool holders using clamp and pin retention. Compatible material grades include C5, C5A, C6, and C7 carbide classification ranges as noted in the product specifications.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Power down and lock out the machine spindle before indexing or replacing inserts. Use the appropriate torque wrench and manufacturer-specified clamping hardware when seating the insert to avoid micro-fractures at the cutting edge. Inspect the tool holder pocket for wear or debris before installing a fresh insert to ensure proper seating and edge repeatability.
