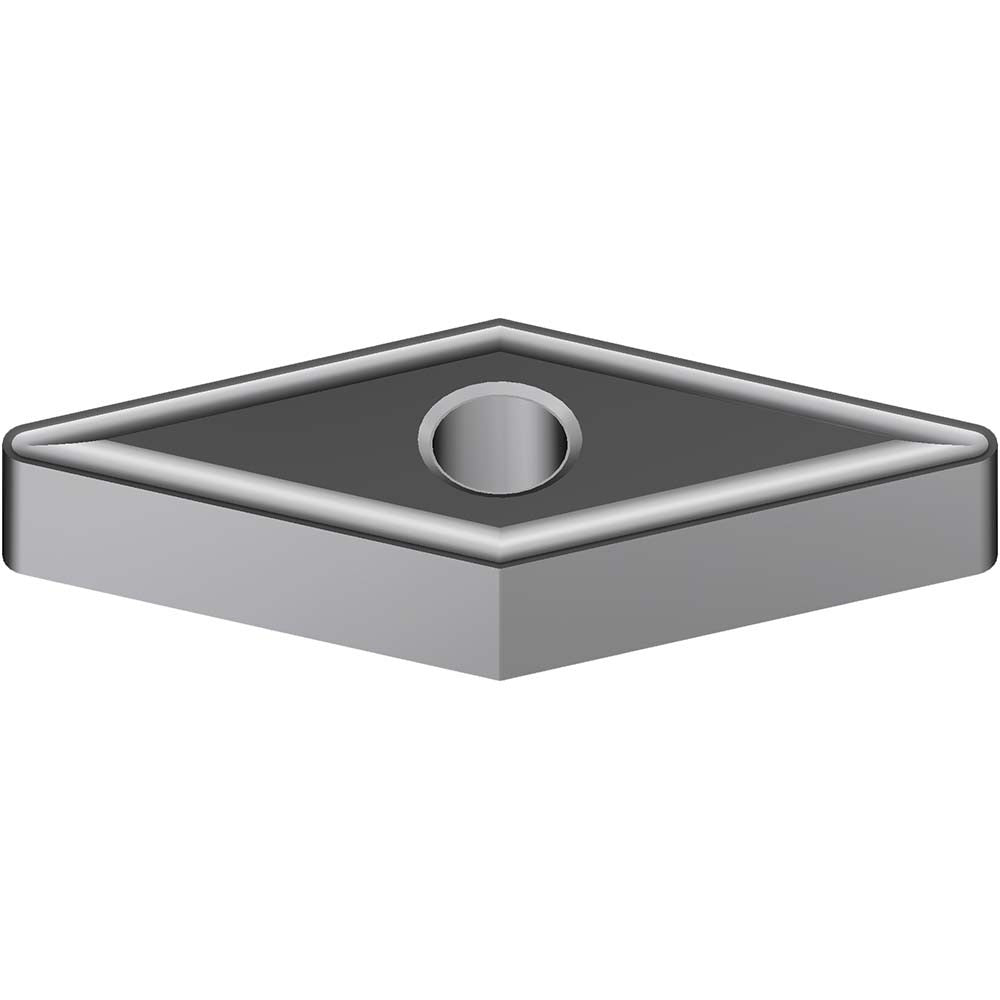

Sumitomo 19P7302 Carbide Turning Insert VNMG432ENZ AC8025P

Product Description

The SUMITOMO 19P7302 is a VNMG432ENZ-style solid carbide turning insert with AC8025P grade coating, designed for precision external turning operations on steel workpieces. The insert features a 35-degree diamond shape (V-style) with a negative rake geometry and a 0-degree clearance angle (N), making it well-suited for heavy interrupted cuts and finishing passes where edge stability is critical. The 1/2-inch inscribed circle and 3/16-inch thickness provide substantial cutting-edge support. Applied via CVD coating process, the AC8025P grade offers enhanced wear resistance for steel turning. This insert is installed by machinists and CNC lathe operators in production and job-shop environments.

The 19P7302 is intended for use on steel workpieces, classified under primary workpiece material code P. The ENZ chip breaker geometry is optimized for controlled chip evacuation during medium to finishing-depth turning passes. With a neutral hand orientation, this insert is compatible with standard VNMG-style toolholders using clamp and pin holding methods. It is applicable in both manual and CNC lathe setups where consistent surface finish and dimensional accuracy on steel components are required.

Key Features

• VNMG432ENZ geometry with 35-degree diamond insert shape for strong cutting-edge engagement
• AC8025P CVD-coated solid carbide grade engineered for steel turning applications
• ENZ chip breaker for controlled chip formation during medium to finish turning
• Negative rake, 0-degree clearance (N tolerance M) for edge stability under load
• 1/2-inch inscribed circle with 1/32-inch corner radius for precise finishing geometry
• Neutral hand orientation fits standard VNMG clamp-and-pin toolholders

Compatibility

Designed as an OEM-style replacement insert for standard VNMG-style turning toolholders using clamp and pin holding methods, conforming to ANSI code VNMG432ENZ and ISO 13399 code VNMG220408N-UZ.

Installation Notes

Installation is performed by qualified machinists or CNC setup technicians. Always power down and lock out the lathe spindle before indexing or replacing inserts. Use the appropriate torque wrench and manufacturer-specified clamp hardware when seating the insert to avoid micro-fractures in the carbide. Inspect the insert pocket and seating surface for chips or debris before installing a new insert.
