Sumitomo 19HWCFY Turning Insert CNMG432EEG AC520U Carbide

Product Description

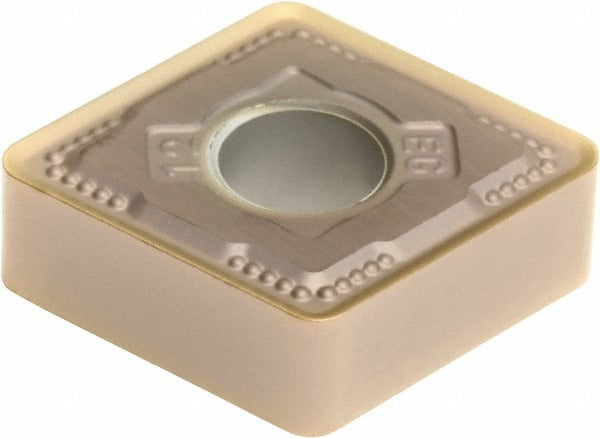

The SUMITOMO 19HWCFY is a solid carbide turning insert in the CNMG432EEG geometry, finished with a dual PVD coating of TiAlN and AlCrN under SUMITOMO's proprietary Super ZX designation. The insert features an 80-degree diamond shape (ANSI code CNMG432EEG, ISO code CNMG120408N-EG), a neutral rake and hand orientation, a 0.5079-inch length, a 0.5000-inch inscribed circle, and a 0.0313-inch corner radius. Designed for use on CNC turning centers and lathes, this insert suits licensed machinists and tooling specialists running high-demand metal removal operations where edge toughness and thermal resistance are critical.

The EEG chip breaker geometry and AC520U grade make this insert well-suited for turning stainless steel, superalloys, and titanium - workpiece material codes M and S. It is intended for applications where controlled chip formation, reduced built-up edge, and coating durability under elevated cutting temperatures are required. The insert mounts via clamp and pin holding methods and carries a clearance code of N with a tolerance code of M, consistent with precision-fit toolholders in that system.

Key Features

• Dual PVD coating: TiAlN and AlCrN (Super ZX) for high heat resistance and extended tool life
• AC520U grade engineered for stainless steel, superalloy, and titanium machining
• EEG chip breaker promotes controlled chip evacuation in difficult-to-machine materials
• 80-degree diamond insert shape (Code C) provides a strong cutting edge geometry
• Neutral rake and hand orientation for flexible toolholder compatibility
• Compliant with ANSI and ISO 13399 standards for insert identification and tooling data exchange

Compatibility

Designed as an OEM-style replacement turning insert for CNMG-style toolholders accepting a 0.5000-inch inscribed circle, clamp and pin mounting, clearance code N, and tolerance code M. Compatible with systems requiring ANSI code CNMG432EEG or ISO code CNMG120408N-EG inserts.

Installation Notes
