Sumitomo 16HQEGD Pcd Turning Insert Ccmt DA1000

Product Description

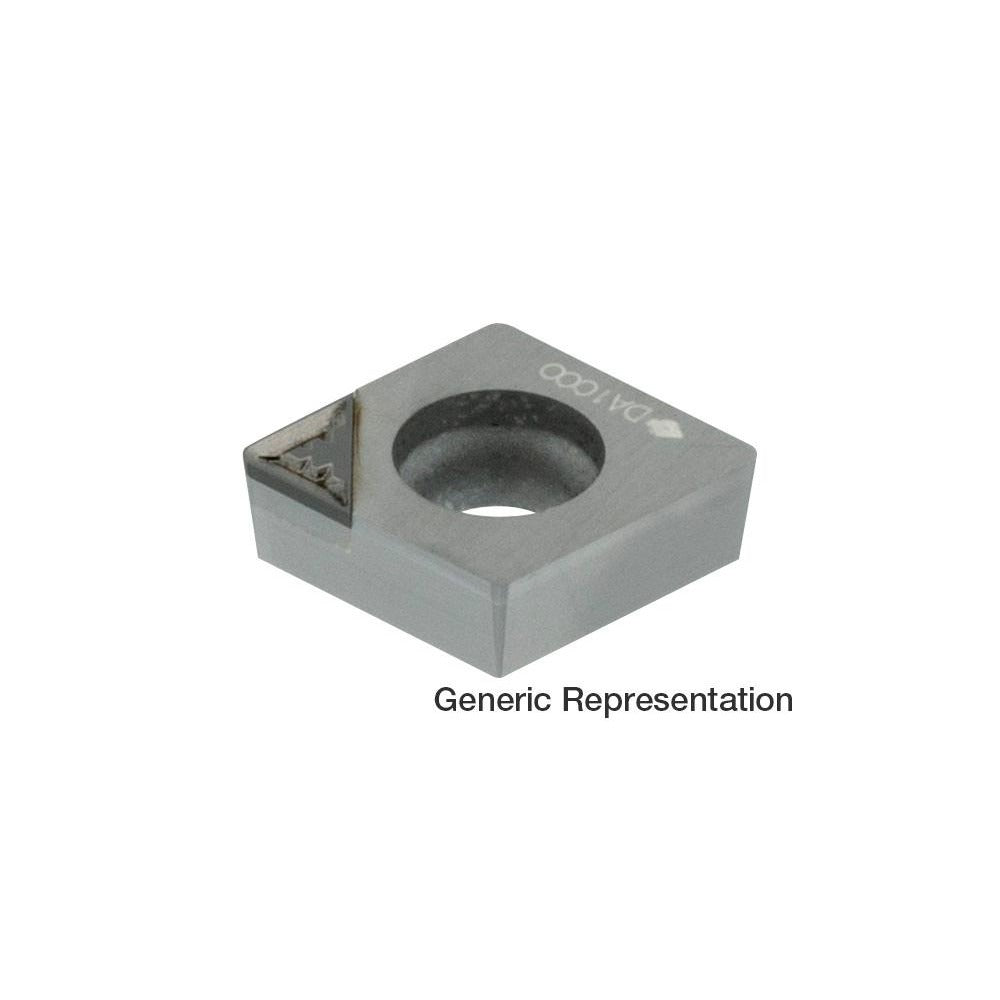

The SUMITOMO 16HQEGD is a Polycrystalline Diamond (PCD) turning insert designed for precision metal-cutting operations on non-ferrous workpiece materials. This insert carries the DA1000 manufacturer grade and features an 80-degree diamond shape (CCMT insert style) with a neutral cutting hand and a positive rake angle. It has an inscribed circle of 3/8 inches, a corner radius of 1/64 inches, and an insert thickness of 5/32 inches (0.1563 inches decimal). The uncoated PCD construction delivers sharp, consistent cutting performance on aluminum, copper, and similar non-ferrous alloys. Machinists and tooling technicians install this insert in compatible CCMT toolholders for turning applications on CNC lathes and manual lathes.

This insert is intended for turning operations on non-ferrous metals, including aluminum, brass, and copper alloys. The GD chip breaker geometry supports controlled chip formation at typical finishing and semi-finishing depths of cut. The neutral cutting direction makes it suitable for a range of toolholder orientations. The pin-and-screw insert holding method provides secure clamping in CCMT-style toolholders, reducing the risk of insert movement during interrupted or continuous cuts. It is best suited for shops requiring a reliable, uncoated PCD solution for non-ferrous turning on CNC or manual turning centers.

Key Features

• Polycrystalline Diamond (PCD) insert material for non-ferrous turning applications
• DA1000 manufacturer grade with GD chip breaker geometry
• CCMT insert style with 80-degree diamond shape and neutral cutting hand
• Positive rake angle with 7-degree relief angle for reduced cutting forces
• Uncoated construction — no coating buildup that can affect edge sharpness on soft non-ferrous alloys
• Pin and screw holding method for secure, repeatable insert clamping
• Complies with ANSI and ISO 13399 standards (ANSI Code: NFCCMT32.51GD; ISO Code: NF-CCMT09T304N-GD)

Compatibility

Designed as an OEM-style replacement and standard-fit insert for CCMT-style toolholders used in non-ferrous turning applications. Compatible with toolholders that accept the CCMT 32.51 insert size code. Confirm toolholder pocket geometry and clamping style before installation.

Installation Notes
