Sumitomo 16GCW3N Pcbn Turning Insert BN350 Uncoated

Product Description

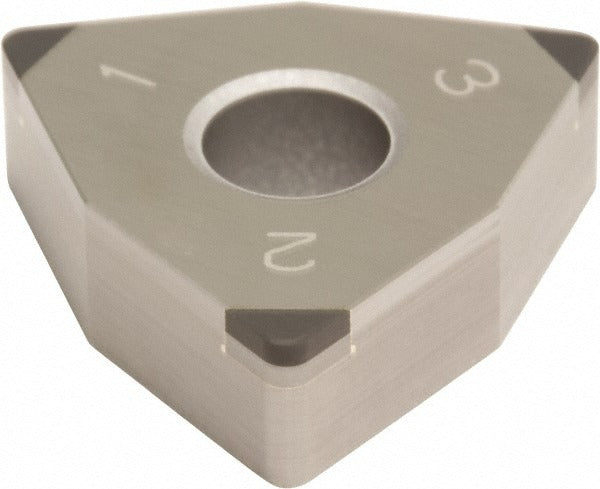

The SUMITOMO 16GCW3N is a PCBN (polycrystalline cubic boron nitride) trigon turning insert engineered for hard-turning applications on steel and ferrous workpieces. It carries manufacturer grade BN350 and ships uncoated with a bright finish. The insert features an 80-degree included angle, a 1/2 inch inscribed circle, and a 1/32 inch corner radius. Negative rake and negative side clearance geometry are suited to interrupted cuts and hardened materials. It uses a clamp and pin holding method, making it compatible with standard toolholders designed for WNGA-style inserts. Machinists and CNC lathe operators working in job shops or production environments are the primary installers.

This insert is designed for turning operations on steel and other hard ferrous materials classified under primary workpiece material code H. The trigon WNGA shape and 80-degree included angle provide strong cutting edge support at moderate-to-high cutting speeds. With three cutting edges per insert and a maximum depth of cut of 0.015 inches, it is suited to finish and semi-finish turning passes where edge integrity and surface finish consistency are critical. It conforms to both ANSI and ISO 13399 standards, supporting use in facilities that require documented tooling traceability.

Key Features

• PCBN insert material rated for hard turning of steel and hardened ferrous workpieces
• BN350 manufacturer grade with bright, uncoated finish for consistent edge performance
• 80-degree trigon (W) insert shape with negative rake and negative side clearance geometry
• 1/2 inch inscribed circle and 1/32 inch corner radius for finish and semi-finish passes
• Three cutting edges per insert maximize tooling economy
• Conforms to ANSI and ISO 13399 standards; ANSI insert code WNGA432, ISO insert code WNGA080402

Compatibility

Designed as an OEM-style replacement for WNGA-style PCBN turning inserts in standard toolholders that accept a clamp and pin holding method with an ANSI size code of 432 and a 0.2031 inch hole diameter.

Installation Notes
