Sumitomo 16CDBBC Pcd Turning Insert 0.25 in Ic DA2200

Product Description

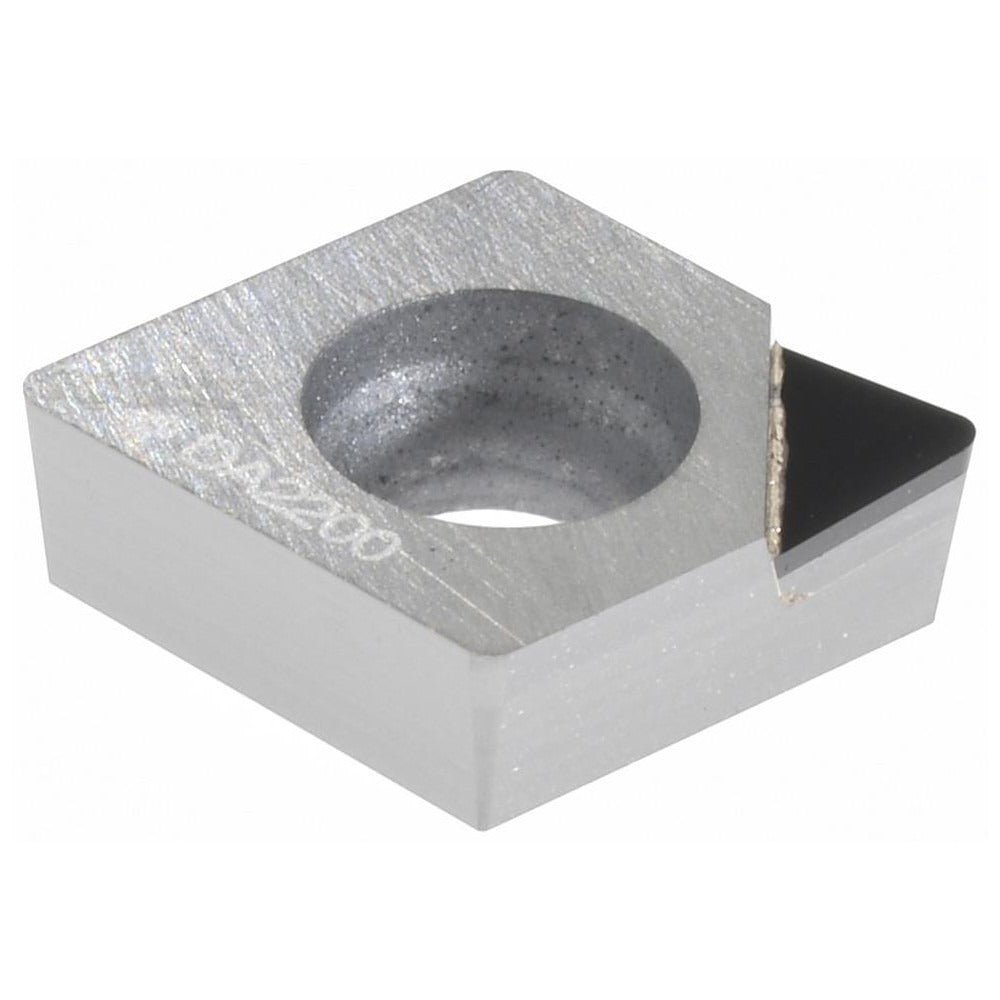

The SUMITOMO 16CDBBC is a Polycrystalline Diamond (PCD) turning insert designed for precision machining of non-ferrous metals and other materials where high wear resistance is required. Manufactured to the CCMX21.51 ANSI insert standard and ISO code CCMX060204, this insert features an 80-degree diamond (rhombic) shape with a positive rake and positive side clearance geometry. The DA2200 grade delivers high to moderate wear resistance combined with adequate toughness, making it well suited for aluminum and non-ferrous finishing and semi-finishing operations. The uncoated bright finish is standard for PCD tooling. Insert is held by screw and is compatible with CCMX-style toolholders.

The 16CDBBC is intended for CNC turning centers and manual lathes used in production and job-shop environments handling aluminum, copper, brass, and other non-ferrous workpiece materials. The positive geometry reduces cutting forces, which is particularly useful when machining thin-walled or heat-sensitive non-ferrous components. This insert is installed and changed by machinists and CNC tooling specialists maintaining insert toolholders in production or maintenance turning applications.

Key Features

• PCD insert material for exceptional wear resistance in non-ferrous machining
• 80-degree diamond (rhombic) insert shape with positive rake geometry
• DA2200 grade: rated for aluminum and non-ferrous materials, high to moderate wear resistance
• Uncoated bright finish — standard for PCD grade tooling
• Screw-mount insert holding method for secure, repeatable seating
• Meets ANSI and ISO 13399 standards; ANSI code CCMX21.51, ISO code CCMX060204

Compatibility

Designed as an OEM-style replacement or direct-fit insert for CCMX-style screw-clamp turning toolholders accepting a 0.25 inch inscribed circle, 80-degree diamond insert per ANSI CCMX21.51 and ISO CCMX060204 specifications.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Always power down and lock out the machine spindle before indexing or replacing inserts. Use the correct torque driver for the insert clamping screw — follow the toolholder manufacturer's seating procedure to avoid micro-fracture of the PCD edge. Inspect the insert pocket and seating surface for chips or debris before installing a new insert.
