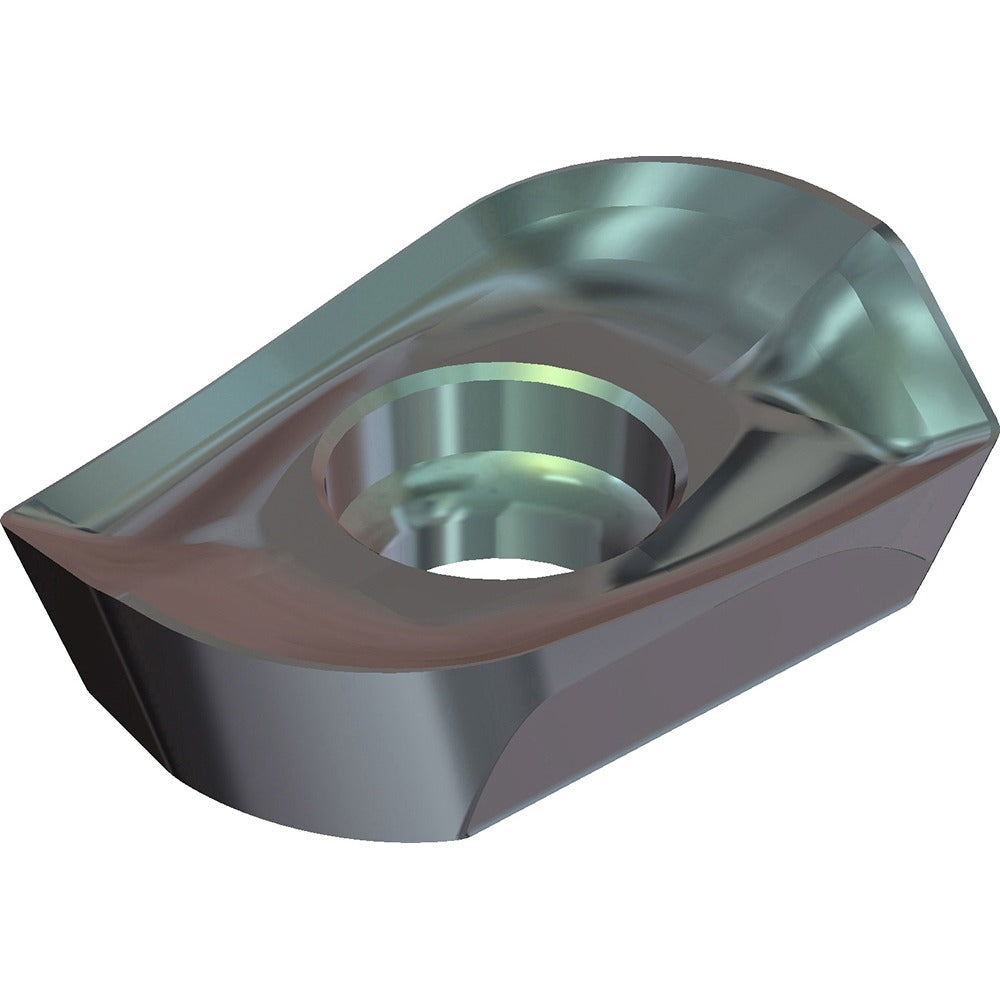

Sumitomo 14U3ARP Carbide Milling Insert DL2000 Pvd Absotech

Product Description

The SUMITOMO 14U3ARP is a solid carbide milling insert designed for high-performance metal cutting operations. Built to AOET11T3 insert style and size standards, this right-hand insert carries the DL2000 manufacturer grade and features an Absotech PVD coating applied via physical vapor deposition. The insert measures 3.4 mm thick and 12.2 mm wide, with a 3.20 mm corner radius and a maximum depth of cut of 9.50 mm. The S-style chip breaker geometry promotes controlled chip evacuation during interrupted and continuous milling cuts. This insert is installed by machinists and tooling technicians in production and job-shop environments.

The 14U3ARP is suited for milling applications where a right-hand, rectangular solid carbide insert with a positive PVD coating is required. It is compatible with the WEZ cutter series and is appropriate for use in both high-volume production runs and precision milling scenarios. The Absotech coating classification indicates enhanced wear resistance and thermal stability, making this insert well-suited to demanding cutting conditions in ferrous and non-ferrous materials.

Key Features

• Solid carbide construction for rigidity and wear resistance
• DL2000 grade with Absotech PVD coating for extended tool life
• AOET11T3 insert style and size with S-style chip breaker
• 3.20 mm corner radius for controlled surface finish
• Maximum depth of cut of 9.50 mm
• Right-hand cutting orientation

Compatibility

Compatible with the WEZ cutter series as specified by the manufacturer. Consult tooling documentation to confirm holder and pocket geometry before installation.

Installation Notes

Insert seating and torque should follow the cutter body manufacturer specifications for the WEZ series toolholder. Power down and lock out the spindle before changing inserts. Use the correct torx or insert-clamp wrench to avoid damaging the seating pocket. Inspect the pocket and clamping components for wear or debris before seating a new insert.
