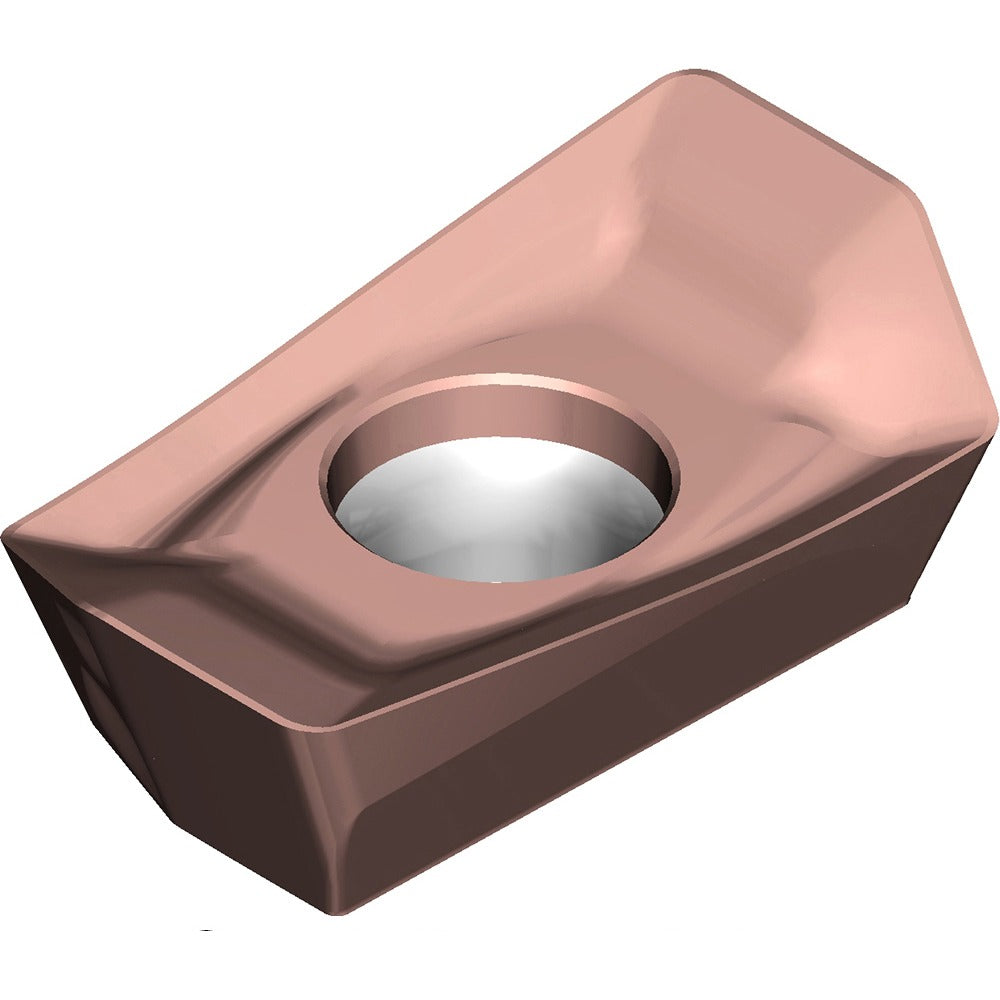

Sumitomo 14T9AKT Milling Insert ACP3000 Solid Carbide

Product Description

The SUMITOMO 14T9AKT is a solid carbide milling insert designed for indexable milling operations in metal-cutting applications. It carries the ACP3000 grade with an Absotech PVD coating, a process engineered to extend tool life in demanding cutting conditions. The insert measures 19.5 mm wide and 5.5 mm thick, features a rectangular AOMT style geometry with a 0.80 mm corner radius, and supports a maximum depth of cut of 15.0 mm. The right-hand cutting orientation and G chip breaker geometry help manage chip flow during milling. Machinists and tooling technicians working in production or job-shop environments are the typical end users for this insert.

This insert is suited for face milling and shoulder milling operations across a range of ferrous and non-ferrous workpiece materials. It is compatible with the WEZ cutter series as designated by the manufacturer. The AOMT insert style and 1705 insert size make it applicable to standard indexable milling bodies that accept that geometry. It is supplied individually and is intended as a direct replacement for worn or damaged inserts within an existing tooling setup.

Key Features

• ACP3000 Absotech PVD coating for extended wear resistance
• Solid carbide substrate for rigidity and thermal stability
• 0.80 mm corner radius reduces cutting edge chipping
• Maximum depth of cut of 15.0 mm supports productive material removal
• G chip breaker geometry promotes controlled chip formation
• Right-hand cutting orientation for standard milling body compatibility

Compatibility

Compatible with the WEZ cutter series. Insert style is AOMT, insert size is 1705. Verify cutter body pocket specifications before installation.

Installation Notes

Insert seating and clamping should be performed by a qualified machinist or tooling technician. Ensure the milling cutter body is fully removed from the spindle and the machine is locked out before indexing or replacing inserts. Use the correct torx or hex key specified for the cutter body to achieve proper clamping torque — do not overtighten or undertighten the clamping screw. Inspect the insert pocket for debris or damage before seating the new insert.
