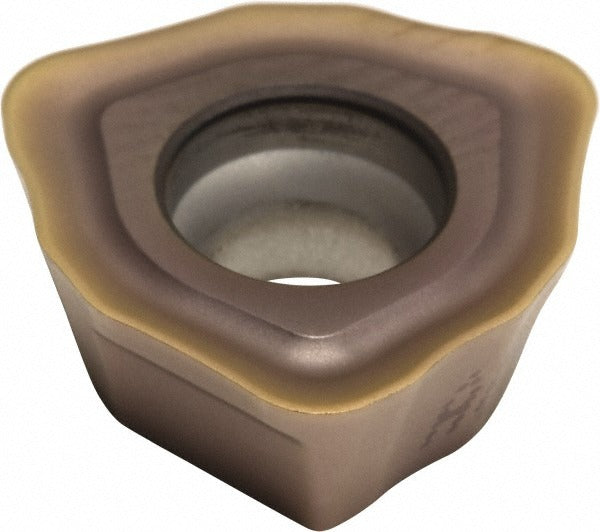

Sumitomo 14HA624 Milling Insert WDMT0804ZDTR ACP200

Product Description

The SUMITOMO 14HA624 is a solid carbide milling insert designed for high-performance metal cutting applications. It follows the WDMT insert style in a trigon (80-degree included angle) shape, manufactured to ISO standards under the grade designation ACP200. The PVD coating improves wear resistance and extends tool life during demanding cuts. With a thickness of 0.1575 inches and an inscribed circle of 0.3350 inches, this insert is built for precision milling in professional machine shop and production environments. Licensed machinists and CNC operators are the primary users of this insert type.

This insert is suited for milling stainless steel and steel workpieces, covering ISO material codes M and P. It is compatible with the MSX cutter series and is intended for use in applications where tight tolerances and consistent surface finish are required. The ACP200 grade and PVD coating process make it well-suited for production milling where tool life and edge stability are priorities. This insert is sold individually but carries a minimum order quantity of 10 units.

Key Features

• Solid carbide construction with PVD coating for extended wear resistance
• Trigon insert shape with 80-degree included angle for versatile milling geometry
• ACP200 manufacturer grade optimized for stainless steel and steel cutting
• Corner radius of 0.0787 inches for controlled edge engagement
• Compatible with MSX cutter series for direct system integration
• Manufactured to ISO standards under ISO code WDMT0804ZDTR ACP200

Compatibility

Compatible with the MSX cutter series. Designed for use with ISO-standard WDMT-style insert seats. Verify seat geometry and clamping method against machine tool documentation before installation.

Installation Notes

Insert seating and torque should be performed by a qualified machinist or CNC tooling technician following the tool holder manufacturer specifications. Power down and lock out the machine spindle before changing inserts. Inspect the insert pocket and clamping screw for wear or damage before seating a new insert. Follow all applicable shop safety protocols when handling carbide tooling.
