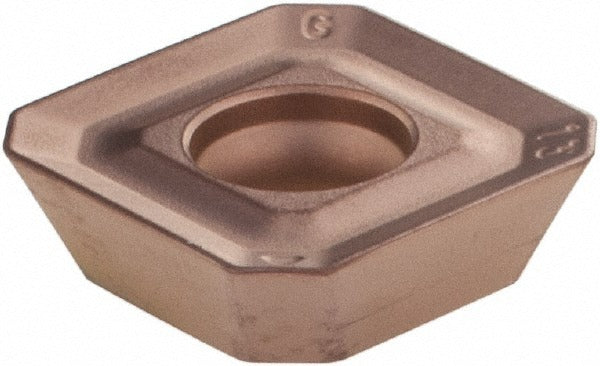

Sumitomo 14DW295 Milling Insert ACZ330 Solid Carbide

Product Description

The SUMITOMO 14DW295 is a solid carbide coated milling insert designed for precision metal removal in indexable milling applications. Manufactured to the ACZ330 grade, this insert features a square shape in the SEMT style with an insert size code of 13T3. The cutting edge effective length measures 0.528 inches, and the insert thickness is 0.156 inches (3.97 mm). A 20-degree relief angle supports efficient chip evacuation and reduced cutting forces. The G chip breaker geometry is integrated into the insert design. This part is installed by machinists and tool-and-die professionals working with indexable milling toolholders in production and job-shop environments.

The 14DW295 is suited for indexable face milling, shoulder milling, and general-purpose milling operations where solid carbide coated inserts are specified. The SEMT insert style and 13T3 size make this insert compatible with toolholders designed around that geometry. It is appropriate for use in both CNC machining centers and manual milling setups where the corresponding toolholder accepts this insert size and style.

Key Features

• Solid carbide construction with coated finish for extended tool life
• ACZ330 manufacturer grade for demanding milling applications
• Square insert shape in SEMT style, size code 13T3
• 0.528-inch cutting edge effective length
• 20-degree relief angle for reduced cutting forces and efficient chip flow
• G chip breaker geometry for controlled chip formation

Compatibility

Designed as an OEM-style replacement insert for indexable milling toolholders that accept SEMT-style square inserts in the 13T3 size with a thickness range of 0.150 to 0.175 inches and a length range of 0.500 to 0.600 inches.

Installation Notes

Installation is performed by qualified machinists or tooling technicians. Always power down and lock out the machine spindle before seating or removing inserts. Use the correct torx or hex key specified by the toolholder manufacturer when tightening insert screws — do not overtighten. Inspect the toolholder pocket for wear or damage before installing a new insert.
