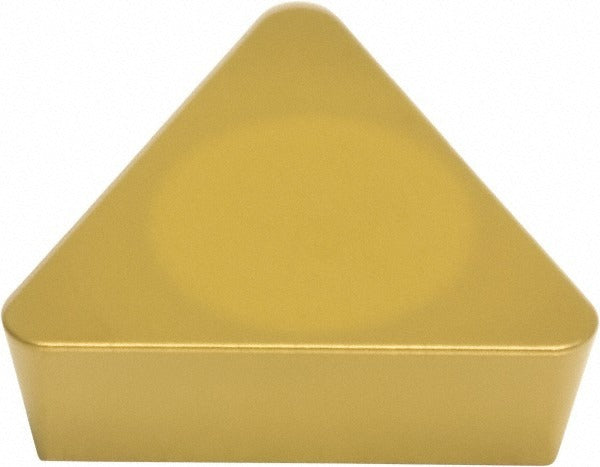

Sumitomo 12RJ744 Carbide Turning Insert TPG434 AC820P

Product Description

The SUMITOMO 12RJ744 is a solid carbide turning insert in the TPG434 style, designed for precision external turning operations on CNC and manual lathes. It features a triangular insert shape with a 60-degree included angle, an 11-degree relief angle, and a positive rake geometry. The AC820P grade incorporates an aluminum oxide (Al2O3) CVD coating that provides thermal resistance and wear protection during continuous and semi-interrupted cuts. With a 0.5-inch inscribed circle and a 0.0625-inch corner radius, this insert is suited for general-purpose turning where a sharp, defined nose geometry is required. Installation is by clamp-style insert holding.

This insert is used in lathe turning applications where the workpiece material is steel, classified under ISO material code P. It fits standard TPG-style toolholders with a clamp-type insert seat and is commonly applied in production turning environments for finishing and medium stock removal passes. The positive rake geometry reduces cutting forces, making it a practical choice for light-to-medium depth-of-cut operations on carbon and alloy steels.

Key Features

• Solid carbide construction with CVD-applied Al2O3 coating for extended tool life on steel
• Triangular insert shape with 60-degree included angle provides three usable cutting edges
• 11-degree relief angle (clearance code P) reduces flank wear in turning applications
• Positive rake geometry lowers cutting forces on steel workpieces
• 0.0625-inch corner radius balances surface finish quality with edge strength
• Conforms to ANSI code TPG434 and ISO code TPGN220416 per ANSI and ISO 13399 standards

Compatibility

Designed as an OEM-style replacement insert for standard TPG-style clamp-type turning toolholders used in external turning of steel workpieces on CNC and manual lathes.

Installation Notes

This insert is installed by a licensed machinist or toolroom technician using the appropriate clamp and toolholder assembly rated for TPG434 geometry. Before changing inserts, the machine spindle must be fully stopped and the machine locked out per shop safety protocol. Use the correct torque on the clamp screw as specified by the toolholder manufacturer - do not overtighten, as this can fracture the carbide insert. Inspect the insert seat and clamp for wear or debris before seating a new insert.
