Sumitomo 1033W3M Turning Insert CNGG431ESUJ H1 Carbide

Product Description

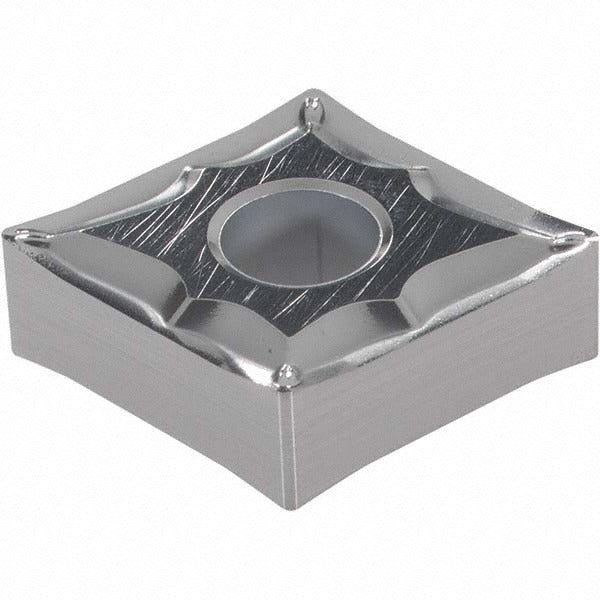

The SUMITOMO 1033W3M is a solid carbide, uncoated turning insert in the CN series, designed for precision metal cutting on CNC and manual lathes. It carries the ANSI code CNGG431ESUJ and ISO code CNGG120404N-SUJ, featuring an 80-degree diamond insert shape with a negative rake geometry. The H1 manufacturer grade and ESUJ chip breaker make this insert well-suited for finishing and light cutting passes on non-ferrous workpiece materials. The uncoated carbide construction provides a sharp, consistent cutting edge without the thermal buildup associated with coated inserts. Licensed HVAC installers and machinists in precision turning applications will find this insert appropriate for tight-tolerance finishing work.

This insert is intended for turning operations on non-ferrous metals, including aluminum and copper alloys, where a sharp uncoated edge is preferred to minimize built-up edge. It fits into CNGG-style toolholders using a clamp and pin holding method. The neutral hand orientation makes it suitable for both left- and right-hand turning setups. It is typically used in production or job-shop environments where CNC lathe operators require consistent chip control on softer, non-ferrous materials.

Key Features

• Solid carbide, uncoated construction for sharp edge retention on non-ferrous metals
• 80-degree diamond insert shape (Shape Code C) with negative rake for stable cutting geometry
• ESUJ chip breaker designed for controlled chip formation during finishing cuts
• Neutral insert hand allows use in both left- and right-hand toolholder setups
• Clamp and pin holding method provides secure seating in compatible toolholders
• Compliant with ANSI and ISO 13399 standards for interchangeability and tool data exchange

Compatibility

Designed as an OEM-style replacement or direct-fit insert for CNGG-style turning toolholders that accept a 1/2-inch inscribed circle, 3/16-inch thick diamond insert with a clamp and pin holding method, per ANSI code CNGG431ESUJ.

Installation Notes
