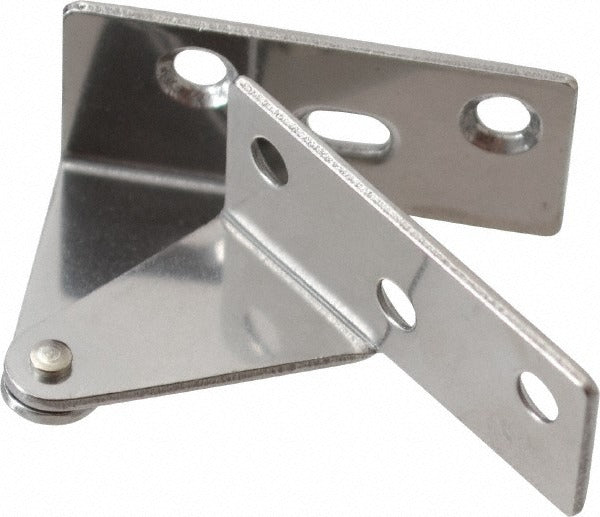

Sugatsune WP-3L Left Hand Overlay Door Pivot Hinge

Product Description

The SUGATSUNE WP-3L is a left-hand overlay door pivot hinge constructed from 430 stainless steel in a plain finish. It is designed for overlay door applications where the hinge leaf mounts to the face of the cabinet or frame, allowing the door to swing on a vertical pivot axis. The WP-3L measures approximately 1-7/64 inches long by 1-37/64 inches wide by 1-1/2 inches thick, with a leaf height of 45/64 inches. Rated at 3.9 pounds capacity, this hinge is suited for lightweight cabinetry doors in commercial, marine, food-service, or sanitary environments where stainless steel corrosion resistance is required. Installation is typically performed by a finish carpenter, millwork installer, or general contractor.

The WP-3L fits left-hand overlay door configurations and is appropriate for use in residential and light commercial cabinetry. Its stainless steel construction makes it well-suited for environments exposed to moisture, cleaning agents, or corrosive atmospheres, such as commercial kitchens, marine cabinetry, medical casework, and food-processing facilities. The single-knuckle, six-hole design keeps the profile compact while providing a secure pivot mount. The plain finish allows for use as-is or acceptance of an applied finish if needed.

Key Features

• Left-hand overlay door pivot configuration for precise door alignment on overlay-style cabinetry
• 430 stainless steel construction resists corrosion in wet and chemically active environments
• Single-knuckle design with six mounting holes for a low-profile, secure installation
• 3.9 pounds door weight capacity suitable for lightweight overlay panels
• Compact overall dimensions of 1-7/64 inches long by 1-37/64 inches wide by 1-1/2 inches thick
• Plain finish compatible with standard surface treatments or bare stainless applications

Compatibility

Designed as a left-hand overlay door pivot hinge replacement or new installation component for lightweight cabinetry doors requiring a 430 stainless steel, single-knuckle pivot hinge with a 45/64-inch leaf height.

Installation Notes

Installation of the WP-3L should be performed by a qualified finish carpenter or millwork installer familiar with overlay pivot hinge alignment. Verify door hand orientation before mounting, as this hinge is configured for left-hand use only and is not reversible. Use appropriate fasteners for the substrate material and ensure all six mounting holes are engaged for full load transfer. Confirm the door weight does not exceed the 3.9-pound rated capacity prior to installation.
