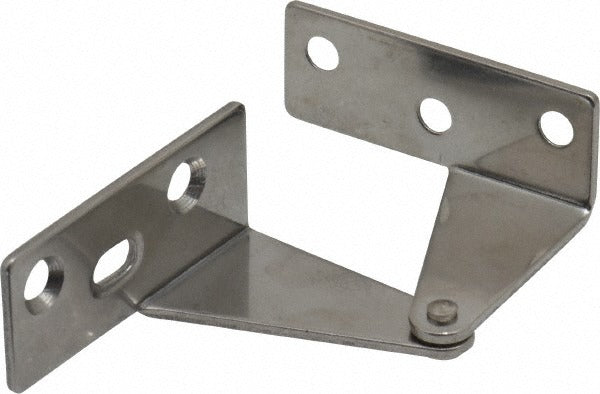

Sugatsune WP-1R Right Hand Overlay Door Pivot Hinge

Product Description

The SUGATSUNE WP-1R is a right-hand overlay door pivot hinge manufactured from plain 430 stainless steel. It is designed to support overlay door applications where a clean, low-profile pivot point is required. The hinge measures 1-11/32 inches long, 1-37/64 inches wide, and 1-1/2 inches thick, with an 18-inch leaf height. It features a single knuckle design with 6 mounting holes and carries a rated load capacity of 3.9 pounds. Licensed tradespeople and millwork installers working on cabinetry, light furniture, or architectural door applications will find this hinge suited to both residential and light commercial installations.

The WP-1R is intended for right-hand overlay door configurations where the door panel overlays the cabinet or frame face. The pivot hinge format is commonly used in applications where continuous or barrel hinges are not practical and a discreet pivot point is preferred. The 430 stainless steel construction provides corrosion resistance suitable for environments with moderate moisture exposure, such as commercial kitchens, food service cabinetry, or marine-adjacent millwork. The plain finish blends with unpainted or brushed stainless door panels without adding visual bulk.

Key Features

• Right-hand overlay configuration for flush or partial overlay door mounting
• Single knuckle design keeps the profile compact at 1-1/2 inches thick
• 430 stainless steel construction resists corrosion in moderate-moisture environments
• 6 mounting holes provide secure fastening across the 1-11/32-inch body length
• 3.9-pound load capacity suitable for lightweight overlay door panels
• 18-inch leaf height supports proper door alignment across the pivot axis

Compatibility

Designed as an OEM-style replacement or new-installation pivot hinge for right-hand overlay door applications in residential cabinetry and light commercial millwork.

Installation Notes

Installation is performed by a cabinetmaker, millwork installer, or finish carpenter using standard hand tools and appropriate fasteners for the substrate material. Verify door hand orientation before mounting — installing a right-hand hinge on a left-hand application will result in misalignment. Ensure the door panel is fully supported and the cabinet or frame is plumb and square before drilling pilot holes. Follow applicable local building codes for fire-rated or specialty door assemblies.
