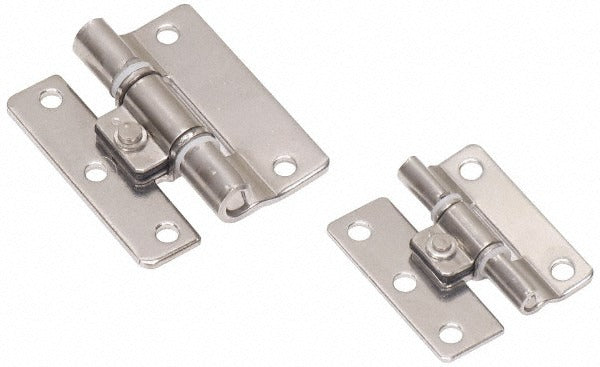

Sugatsune SFTH-05-58 Torque Hinge Stainless Steel

Product Description

The SUGATSUNE SFTH-05-58 is a torque hinge designed to hold doors, panels, or lids at a set position without requiring a separate stay or latch. Built from stainless steel with a polished finish, it delivers 49.90 inch-pounds of torque, providing consistent resistance through the full range of motion. The hinge measures 3-1/4 inches in overall width and 3-35/64 inches in leaf height, with a leaf thickness of 5/64 inches. It features 3 knuckles and 8 mounting holes for secure attachment. Licensed hardware installers and millwork professionals typically install this type of hinge in light industrial, commercial, and architectural applications.

This torque hinge is suited for use on doors or access panels where controlled positioning is required, such as equipment enclosures, instrument panels, display cases, and cabinetry lids. It supports a minimum door thickness of 1-1/8 inches, making it appropriate for solid-core and medium-gauge panel assemblies. The polished stainless steel finish suits both interior and corrosion-resistant exterior applications where aesthetics matter alongside function.

Key Features

• 49.90 inch-pounds of torque for consistent hold-open and controlled positioning
• Stainless steel construction with polished finish for corrosion resistance and clean appearance
• 3-35/64 inch leaf height and 3-1/4 inch overall width for a compact, low-profile footprint
• 8 mounting holes across 3 knuckles for secure, stable fastening
• Supports minimum door thickness of 1-1/8 inches
• Pin diameter of 19/32 inches for smooth, durable pivot action

Compatibility

Designed as an OEM-style torque hinge for doors, access panels, and lids requiring a minimum thickness of 1-1/8 inches in light industrial, commercial, and architectural enclosure applications.

Installation Notes

Installation is typically performed by a licensed hardware installer, cabinetmaker, or millwork professional. Power down or de-energize any panel or enclosure before mounting. Use appropriately sized fasteners for the substrate material and confirm the mounting surface can bear the torque load. Avoid over-tightening mounting screws, as this can distort the leaf and affect torque performance.
