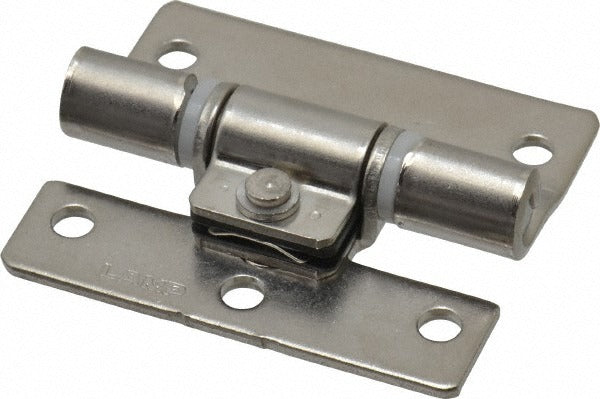

Sugatsune SFTH-03-19 Torque Hinge Stainless Steel Polished

Product Description

The SUGATSUNE SFTH-03-19 is a torque hinge designed to hold doors, panels, or access covers at a fixed position without requiring a latch or additional hold-open hardware. It measures 1-11/16 inches wide and 1-63/64 inches in length, with a leaf thickness of 5/64 inches and a polished stainless steel construction. The hinge delivers 16.50 inch-pounds of torque, providing consistent resistance through the full range of motion. With 5 mounting holes and a 3-knuckle configuration, it is well suited for light industrial enclosures, equipment panels, and precision cabinet applications where controlled movement and corrosion resistance are both required.

This hinge is appropriate for residential cabinetry, commercial equipment enclosures, and light industrial panel applications where a door or lid must remain in a set position without additional hardware. It requires a minimum door thickness of 33/64 inches and is commonly specified for stainless steel or aluminum enclosure doors in environments where a clean, polished appearance is expected. Fabricators, millwork shops, and industrial equipment assemblers are the typical installers of this component.

Key Features

• 16.50 inch-pounds of torque holds doors and panels in position without latches
• Polished stainless steel construction resists corrosion in demanding environments
• 5/64 inch leaf thickness suits thin-wall enclosure doors and lightweight panels
• 5 mounting holes with 3-knuckle design for stable, distributed fastening
• 1/2 inch pin diameter provides a solid pivot point for repeated cycling
• Minimum door thickness of 33/64 inches covers a wide range of panel stock

Compatibility

Designed as an OEM-style torque hinge for light industrial enclosures, equipment panels, and precision cabinetry applications requiring controlled-position door movement.

Installation Notes

Installation is typically performed by fabricators or equipment assemblers using standard hand tools. Power down or de-energize any enclosure before mounting hardware inside electrical panels. Ensure mounting surface material is compatible with stainless steel fasteners to avoid galvanic corrosion. Follow the equipment manufacturer's fastener torque guidance for the specific panel material used.
