Sugatsune SFTH-02-5 Torque Hinge Stainless Steel Polished

Product Description

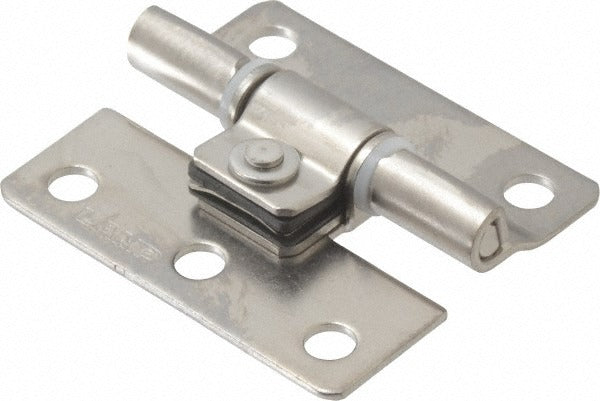

The SUGATSUNE SFTH-02-5 is a torque hinge designed to hold doors, panels, or covers at a set position without the need for additional stays or friction hardware. It is constructed from stainless steel with a polished finish, making it suitable for applications where corrosion resistance and clean appearance are required. The hinge delivers 4.30 inch-pounds of torque and features 3 knuckles with a pin diameter of 21/64 inches. At 3/64 inches thick and 1-25/64 inches wide, it fits in tight mounting envelopes where space is limited. Installation requires access to 5 mounting holes across both leaves. Licensed tradespeople and equipment assemblers working on enclosures, control panels, and specialty door hardware are the primary installers.

This hinge is suited for light-duty positioning applications in residential and commercial settings, including electrical enclosures, HVAC access panels, cabinetry, and instrumentation housings. The door leaf height of 1.5781 inches and frame leaf height of 1-37/64 inches accommodate panels and doors with a minimum thickness of 9/16 inches. Its compact footprint makes it a practical choice for equipment where conventional stay arms or lid supports are not practical due to space constraints.

Key Features

• Torque rating of 4.30 inch-pounds holds panels and covers at a fixed position without additional hardware
• Stainless steel construction with polished finish for corrosion resistance and clean appearance
• 3 knuckles and a pin diameter of 21/64 inches for smooth, consistent movement
• 5 mounting holes across both leaves for secure fastening in tight spaces
• Minimum door thickness requirement of 9/16 inches suits thin panel and enclosure applications
• Compact profile at 3/64 inches thick and 1-25/64 inches wide for space-constrained installations

Compatibility

Designed as an OEM-style replacement or upgrade torque hinge for light-duty panel, enclosure, and cabinetry applications requiring a 5-hole stainless steel torque hinge with a 1-25/64 inch width and 4.30 inch-pound torque rating.

Installation Notes

Installation is typically performed by a millwright, equipment assembler, or skilled technician using standard hand tools. Ensure the mounting surface and panel are clean and free of debris before fastening. Verify that the door or panel thickness meets the 9/16 inch minimum before installation. Disconnect any power or pneumatic sources to the enclosure or panel before beginning work.
