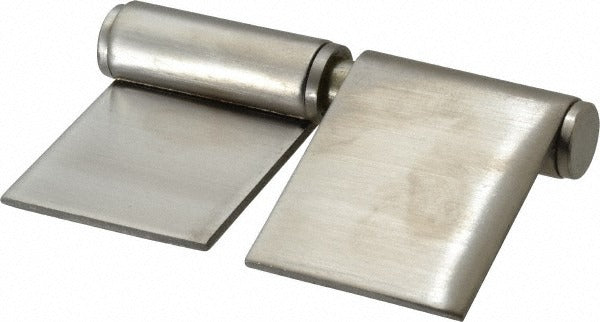

Sugatsune S-6166-2-L Flag Hinge Left Mount Stainless Steel

Product Description

The SUGATSUNE S-6166-2-L is a left-mount flag hinge machined from stainless steel with a satin finish. Flag hinges use a removable pin design that allows a door or panel to be lifted free from the frame without removing fasteners, making them a preferred choice for cleanroom doors, access panels, and precision cabinetry. This hinge carries an 88.0-pound load capacity and measures 2-5/32 inches in overall width with a pin diameter of 15/32 inches. It is installed by licensed millwork contractors, industrial maintenance technicians, and skilled tradespeople working on equipment enclosures or architectural panels.

The S-6166-2-L is suited for light commercial and industrial applications where removable door or panel mounting is required. The left-mount door configuration makes it appropriate for applications where the hinge barrel must be positioned on the left side of the opening. The stainless steel construction resists corrosion, making it practical in environments with moisture exposure or sanitation requirements. Minimum door thickness for installation is 2-5/32 inches.

Key Features

• Flag-style removable-pin design allows door or panel removal without unfastening hardware
• 88.0-pound rated load capacity for reliable support of solid doors and access panels
• Stainless steel construction with satin finish for corrosion resistance
• Left-mount door configuration with 15/32-inch pin diameter
• Door leaf width of 2.1563 inches and door leaf height of 1.9531 inches for precise fitment
• Frame leaf width of 2.1563 inches and frame leaf height of 1-61/64 inches

Compatibility

Designed as an OEM-style flag hinge replacement or new installation component for left-hand door or panel assemblies requiring a minimum door thickness of 2-5/32 inches.

Installation Notes

Installation is typically performed by a millwork contractor, industrial maintenance technician, or qualified tradesperson familiar with door and panel hardware. Power down or de-energize any associated equipment before servicing access panels or enclosure doors. Use appropriate fasteners rated for stainless steel to prevent galvanic corrosion when mounting to dissimilar metals. Verify door leaf and frame leaf alignment before final fastener torque to ensure smooth pin removal and re-engagement.
