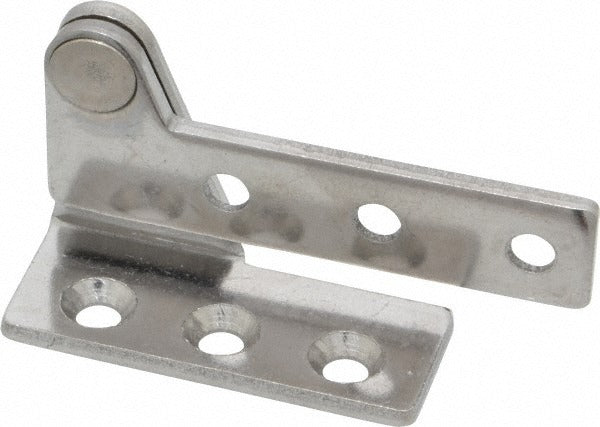

Sugatsune PL-65R Right Hand Overlay Pivot Hinge Stainless

Product Description

The SUGATSUNE PL-65R is a right-hand overlay pivot hinge manufactured in satin finish stainless steel. Measuring 2.5625 inches long by 1.125 inches wide and 0.125 inches thick, it is a compact, low-profile hinge designed for overlay door and panel applications. The 0.3125-inch pin diameter provides a stable pivot point suited for light-duty cabinetry, millwork panels, and architectural joinery. HVAC enclosure panels, electrical cabinet doors, and finish carpentry assemblies are all typical use cases. Installation is handled by finish carpenters, cabinetmakers, and general contractors working on commercial or residential projects.

The PL-65R is suited for overlay door configurations where the door face overlaps the frame opening. Its satin stainless steel finish resists corrosion and blends with brushed metal hardware schemes common in commercial cabinetry and high-specification residential millwork. The right-hand orientation determines the side on which the pivot pin is positioned, so confirm door swing and hinge hand before ordering. This hinge is sold individually and is well suited for applications requiring discrete, surface-mounted pivot hardware.

Key Features

• Right-hand overlay pivot configuration for standard door overlay installations
• Satin finish stainless steel construction for corrosion resistance
• Low-profile body at 0.125 inches thick minimizes protrusion from the door panel
• 0.3125-inch pin diameter provides stable pivot action
• Compact footprint at 2.5625 inches long by 1.125 inches wide suits tight mounting areas

Compatibility

Designed as an OEM-style replacement or new-installation pivot hinge for right-hand overlay door and panel assemblies in cabinetry and millwork applications.

Installation Notes

Installation is typically performed by finish carpenters or cabinetmakers using standard hand tools. Confirm the door hand orientation before mounting to avoid misalignment of the overlay. Ensure the mounting surface is clean, flat, and structurally sound before fastening. Follow applicable local building or joinery standards for hardware installation in commercial environments.
