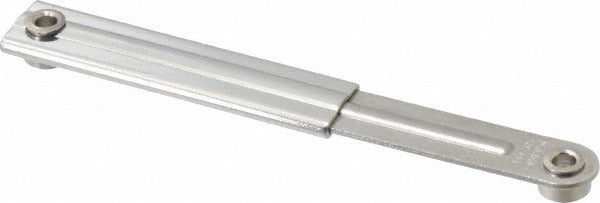

Sugatsune L-100S Lid Stay Damper 13.2 Lb Stainless Steel

Product Description

The SUGATSUNE L-100S is a lid stay damper designed to control the opening motion of hinged lids, covers, and panels in cabinetry, equipment enclosures, and access hatches. It provides a rated load capacity of 13.2 pounds, holding lids open at a set position while absorbing the force of opening to reduce slam and wear. Constructed from 304 stainless steel with a polished finish, it offers strong corrosion resistance suitable for demanding service environments. The non-handed design means it installs on either the left or right side without requiring a mirrored pair, simplifying hardware selection on the job.

The L-100S is suited for residential and light commercial applications where a hinged lid or access cover requires controlled support. Typical installations include equipment access panels, storage bench lids, chest-style enclosures, and cabinetry with top-opening doors. The compact overall length of 4-13/32 inches makes it appropriate for tight mounting spaces where a full-length lid support arm would not fit. Installers working on stainless steel or high-moisture environments benefit from the all-304 stainless construction.

Key Features

• 13.2 lb load capacity for controlled lid support
• 304 stainless steel construction for corrosion resistance
• Polished finish for clean, professional appearance
• Non-handed design installs on left or right side
• Compact overall length of 4-13/32 inches suits tight spaces
• 15.40 mm width keeps mounting footprint minimal

Compatibility

Designed as an OEM-style or aftermarket lid stay damper for hinged lid and access cover applications requiring a compact, non-handed damping stay with a 13.2 lb load rating.

Installation Notes

Installation is typically performed by a finish carpenter, millworker, or equipment fabricator using standard hand tools. Mount both pivot ends securely to the lid and the cabinet or enclosure body, ensuring fasteners are appropriate for the substrate material. Verify the hinge geometry and lid weight do not exceed the 13.2 lb rated capacity before finalizing installation. Follow the manufacturer's mounting template recommendations for proper damper geometry and full range of motion.
