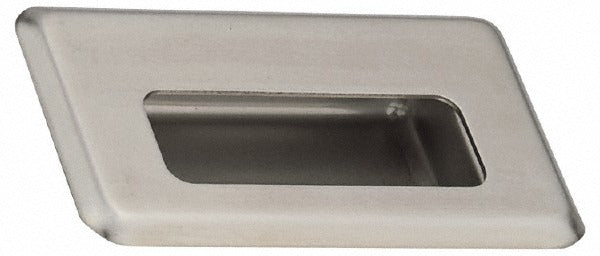

Sugatsune HH-FC-1/S Recessed Pull Satin Stainless Steel

Product Description

The SUGATSUNE HH-FC-1/S is a recessed pull handle designed for cabinet doors, access panels, and equipment enclosures where a flush-mount grip is required. Constructed from 304 stainless steel with a satin finish, this pull installs into a routed or punched recess in the panel face. The overall width is 138mm (approximately 5.44 inches), the overall height is 88mm (approximately 3.46 inches), and the recess depth is 21mm (approximately 0.83 inches). The M4 threaded nut is included for secure fastening from the rear of the panel. This hardware is commonly specified by cabinetmakers, millwork shops, equipment fabricators, and facilities maintenance technicians.

This recessed pull is suited for residential and commercial cabinetry, clean-room enclosures, industrial equipment panels, and marine or food-service environments where a flush profile and corrosion-resistant finish are required. The 96mm recess width (approximately 3.78 inches) and 62mm recess height (approximately 2.44 inches) define the cutout required in the door or panel. The 110mm center-to-center spacing (approximately 4.33 inches) aligns with standard euro-style drilling patterns used in cabinet and enclosure manufacturing.

Key Features

• 304 stainless steel construction provides corrosion resistance in wet or outdoor-adjacent environments
• Satin finish blends with brushed metal panels and modern cabinet hardware
• Flush recessed design eliminates protruding hardware on doors and access panels
• M4 threaded nut included for rear-mount installation without additional hardware
• 110mm center-to-center spacing compatible with common euro-style drilling layouts
• Compact recess footprint: 96mm wide by 62mm tall cutout required

Compatibility

Designed as a flush recessed pull for cabinet doors, access panels, and equipment enclosures requiring an M4 rear-mount fastening system and a 21mm recess depth.

Installation Notes

Installation requires routing or cutting a precise recess into the door or panel face to match the 96mm by 62mm cutout dimensions and 21mm depth. The pull is secured from the rear using the included M4 nut; ensure the panel material is thick enough to accommodate full thread engagement. Power down any associated equipment before servicing panels on electrical or HVAC enclosures. Use appropriate metal-cutting or woodworking tools and follow the enclosure manufacturer's guidelines for hardware installation.
