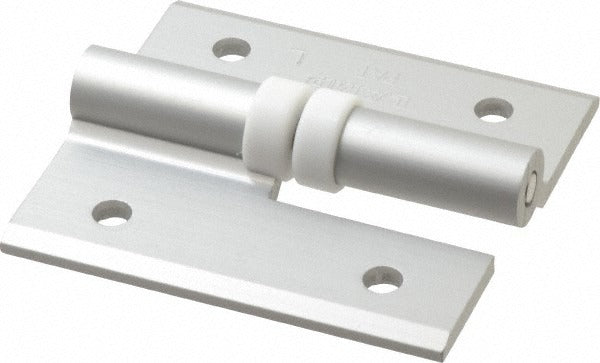

Sugatsune HG-CV65NL Aluminum Cabinet Hinge Left Hand

Product Description

The SUGATSUNE HG-CV65NL is an aluminum cabinet hinge designed for cabinetry and enclosure applications requiring a lightweight, corrosion-resistant pivot point. Constructed entirely from aluminum, this left-hand hinge measures 2-3/8 inches in overall width and 2-9/16 inches in length, with a leaf thickness of 9/64 inches. The single-knuckle design keeps the profile clean and compact. At 0.2 pounds, it is well-suited for light- to medium-duty cabinet doors where minimizing added weight is a priority. Cabinet installers, millwork contractors, and fixture fabricators are the primary trades that work with this hinge.

This hinge is intended for use on aluminum-framed or standard wood cabinet assemblies in residential and light commercial settings. Its left-hand designation makes it specific to doors hinged on the left side. The aluminum construction resists rust, making it appropriate for environments with moderate humidity exposure such as utility rooms, kitchens, or light industrial enclosures. It is sold and packaged as a single unit.

Key Features

• Aluminum construction for lightweight, corrosion-resistant performance
• Left-hand configuration for left-side-hinged cabinet doors
• Single-knuckle design for a low-profile, clean appearance
• 2-3/8 inches overall width with a 35/64 inches butt width leaf
• Pin diameter of 13/64 inches for smooth pivot operation
• Leaf thickness of 9/64 inches keeps the hinge tight to the door and frame

Compatibility

Designed as an OEM-style replacement or new-installation hinge for aluminum and standard wood cabinet assemblies requiring a left-hand, single-knuckle aluminum hinge with a 2-3/8 inches overall width.

Installation Notes

Installation is typically performed by cabinet installers or general contractors using standard woodworking or sheet-metal hand tools. Confirm the door swing direction before mounting to ensure the left-hand orientation is correct for the application. Power down any adjacent electrical enclosures before working in close proximity to live components. Fasten with appropriately sized screws matched to the cabinet frame material to avoid stripping or over-torquing the mounting holes.
