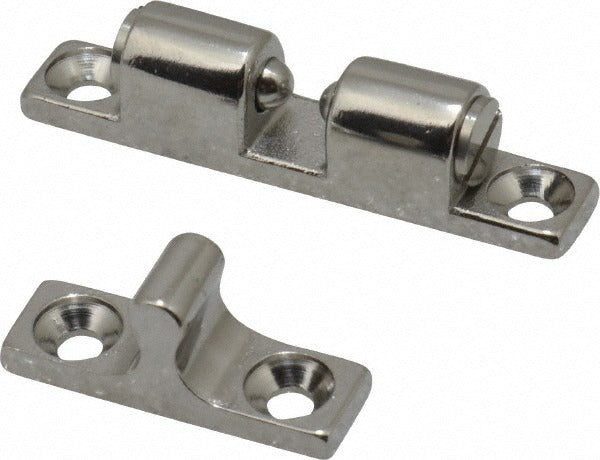

Sugatsune BCTS-40 Tension Catch Stainless Steel Polished

Product Description

The SUGATSUNE BCTS-40 is a compact tension catch designed for pull-open closure applications in cabinetry, enclosures, and access panels. Constructed from polished stainless steel, it provides corrosion resistance suitable for demanding environments. The catch operates via a pull-force mechanism rated at 1.3 N (2.9 lb) and a push-force rating of 2.0 N (4.4 lb), delivering consistent, repeatable latching performance in a small footprint. Overall dimensions measure 1.67 inches long, 0.31 inches wide, and 0.54 inches high, making it well suited for installations where space is limited. The included strike measures 7/16 inches long and 19/64 inches wide. Millwork shops, cabinetmakers, and finish carpenters are the typical installers of this hardware.

The BCTS-40 is used in residential and light commercial applications where a low-profile, non-adjustable tension catch is required. Common install scenarios include cabinet doors, equipment access panels, and lightweight enclosure lids that require a positive pull-to-open release. The polished stainless steel finish suits both functional utility spaces and visible finished interiors where corrosion resistance and appearance both matter. The compact body allows installation in tight door or panel edges without modification to surrounding material.

Key Features

• Polished stainless steel construction for corrosion resistance and clean appearance
• Pull-force rated at 1.3 N (2.9 lb) for consistent pull-open latching
• Push-force rated at 2.0 N (4.4 lb) for secure door or panel retention
• Compact body: 1.67 inches long, 0.31 inches wide, 0.54 inches high
• Includes strike measuring 7/16 inches long by 19/64 inches wide
• Non-adjustable design simplifies installation and reduces setup time

Compatibility

Designed as an OEM-style replacement or new-install tension catch for lightweight cabinet doors, access panels, and enclosure lids requiring a pull-open release mechanism.

Installation Notes

Installation is typically performed by cabinetmakers, millwork installers, or finish carpenters using standard hand tools. Ensure the door or panel is fully supported and in its final position before marking and drilling mounting holes to achieve proper catch-to-strike alignment. Do not overtighten fasteners, as distortion of the catch body can affect latching force. Verify that the pull-force rating is appropriate for the application load before installation.
