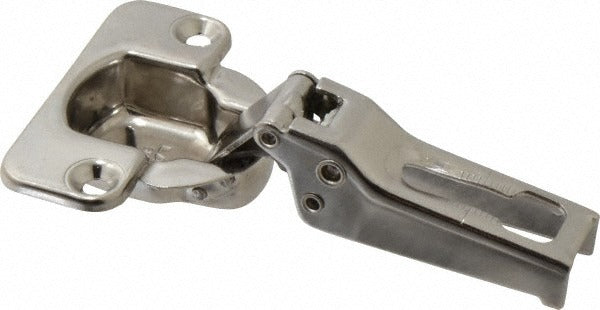

Sugatsune 304B-C46/14 Concealed Overlay Hinge Ss Polished

Product Description

The SUGATSUNE 304B-C46/14 is a self-closing concealed overlay hinge manufactured from 304 stainless steel with a polished finish. Designed for overlay door applications, it mounts with four points of contact for secure, stable operation. The hinge measures 57 millimeters in length, 55 millimeters in overall width, and 38 millimeters in thickness, making it suitable for doors with a minimum thickness of 15 millimeters. The 304 stainless steel construction resists corrosion, making this hinge appropriate for environments where moisture or chemical exposure is a concern. Cabinetmakers, millwork installers, and finish carpenters install this hardware in both residential and light commercial settings.

This concealed overlay hinge is used in cabinet and casework installations where a clean, hardware-free exterior appearance is required. The concealed design keeps the hinge body hidden when the door is closed, preserving a flush finished look. The self-closing action returns the door to the closed position without a separate closing mechanism. Suitable for wood and wood-composite cabinet doors meeting the minimum 15-millimeter thickness requirement. Common applications include kitchen cabinetry, bathroom vanities, built-ins, and commercial casework.

Key Features

• 304 stainless steel construction for corrosion resistance in demanding environments
• Polished finish for a refined, professional appearance
• Self-closing action built into the hinge mechanism
• Concealed overlay design hides hardware when the door is in the closed position
• Four mounting holes for secure, stable attachment
• Accommodates doors with a minimum thickness of 15 millimeters

Compatibility

Designed as an OEM-style concealed overlay hinge for cabinet and casework doors with a minimum thickness of 15 millimeters and an overlay configuration.

Installation Notes

Installation is typically performed by cabinetmakers or finish carpenters using standard drilling and screwing equipment. Verify door thickness meets the 15-millimeter minimum before mounting. Follow the hardware manufacturer's template or layout guide for consistent hole placement across multiple doors. Ensure all fasteners are fully seated and the door is properly aligned before final tightening.
