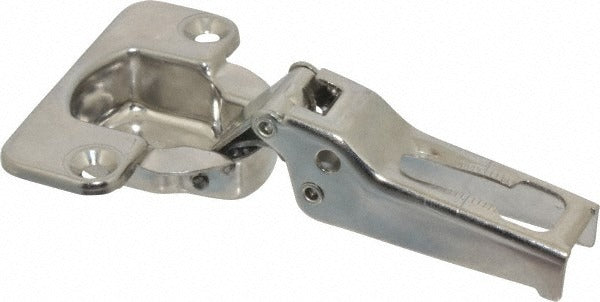

Sugatsune 304B-46/14 Concealed Overlay Hinge Stainless Steel

Product Description

The SUGATSUNE 304B-46/14 is a free-swinging concealed overlay hinge constructed from stainless steel with a polished finish. It is designed for cabinet and door applications where a clean, hidden hinge profile is required. The hinge provides a 100-degree range of motion and accommodates doors with a minimum thickness of 15 millimeters. With four mounting holes and a compact overall length of 57 millimeters, it installs securely and sits flush when the door is closed. Cabinetmakers, millworkers, and finish carpenters typically specify this hinge in residential and light commercial casework where aesthetics and corrosion resistance both matter.

This hinge is suited for overlay door configurations in kitchen cabinetry, bathroom vanities, built-ins, and similar millwork installations. The polished stainless steel construction makes it a practical choice in high-moisture environments such as marine applications, commercial kitchens, or coastal installations where standard steel hardware would be prone to corrosion. The concealed mounting profile keeps the hinge face hidden when the door is in the closed position, maintaining a clean cabinet exterior.

Key Features

• Free-swinging concealed overlay design keeps hardware hidden when door is closed
• Stainless steel construction with polished finish for corrosion resistance
• 100-degree open angle allows full door swing and easy interior access
• Four mounting holes provide secure, stable attachment to door and frame
• Compact 57 millimeter length fits standard overlay cabinet door frames
• Minimum door thickness of 15 millimeters suits most standard cabinet door stock

Compatibility

Designed as an OEM-style replacement or upgrade hinge for overlay cabinet doors requiring a concealed stainless steel hinge with a 100-degree range of motion and a minimum door thickness of 15 millimeters.

Installation Notes

Installation is typically performed by a cabinetmaker or finish carpenter using a drill, appropriate bit, and screwdriver. Power down any integrated cabinet lighting or motorized components before beginning work on the enclosure. Ensure the door panel meets the minimum 15-millimeter thickness requirement before mounting. Follow the fastener pattern established by the four mounting holes and verify door alignment before fully tightening all fasteners.
