Honeywell Q7800A1005 Wiring Subbase Panel Mount

Product Description

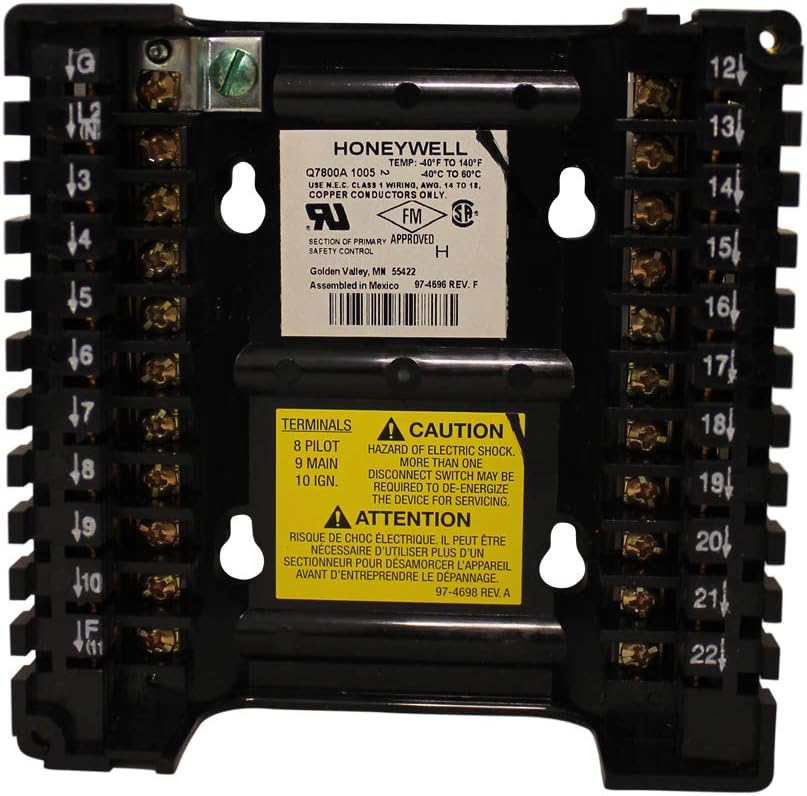

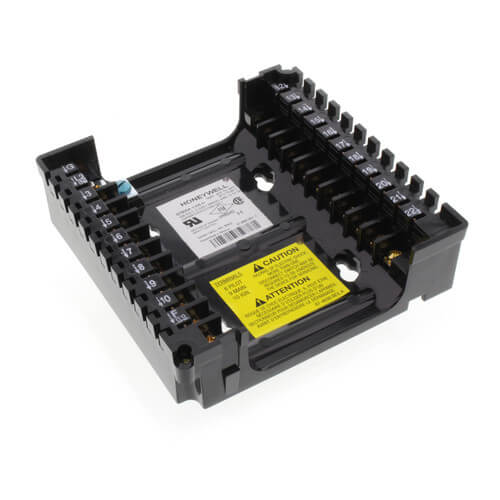

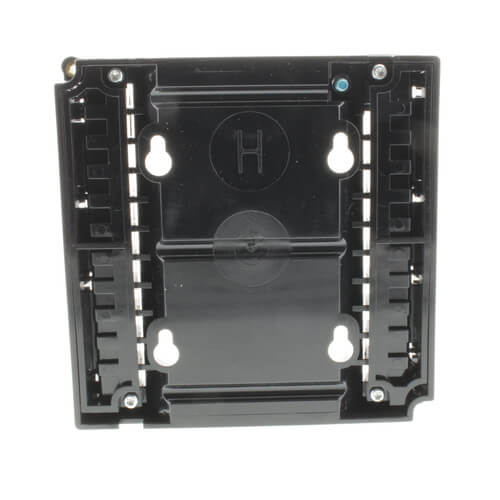

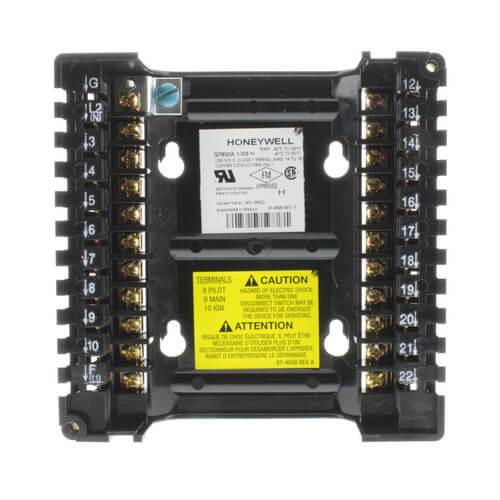

The Honeywell Wiring Subbase Q7800A1005 is a dependable panel mount subbase designed for 7800 SERIES relay modules and the S7830A Expanded Annunciator. This subbase is engineered to ensure reliable electrical connections and provide ease of field wiring.

• Panel mount design
• Steel frame with knockouts for conduit connections
• Provides 22 terminals for field wiring

Product Highlights

This Honeywell wiring subbase, model Q7800A1005, is suitable for burner, panel, or wall mounting. It accommodates electrical connections for 7800 SERIES relay modules and the S7830A Expanded Annunciator through bifurcated contacts.

Product Information

Standard Information

• Brand: Honeywell
• MPN: Q7800A1005
• Product Type: Hardware
• Color: Black

Technical Specifications

• Panel Mount: Yes
• Terminals: 22
• Field Wiring Terminals: Yes
• Bifurcated Contacts: Yes
• Dimensions: 5.91 x 5.79 x 2.68 inches
• Weight: 0.01 ounces
• Application: Wiring Subbase
• Product Link: Honeywell Wiring Subbase Q7800A1005 - Panel Mount
