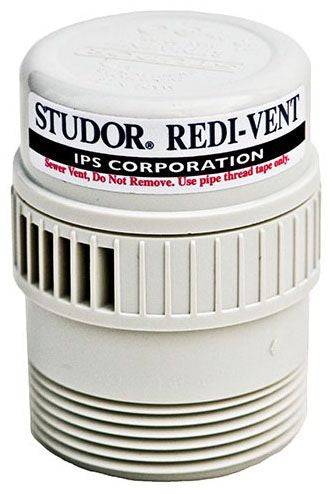

Studor 20346 Redi-Vent Air Admittance Valve 1-1/2 Inch or 2 PVC

Product Description

The Studor Redi-Vent 20346 is an air admittance valve designed for drainage and waste venting in plumbing systems. This valve supports one and a half inch and two-inch PVC pipes, making it versatile for various applications. It is suitable for both commercial and residential use. The integrated PVC adapter allows for easy installation in tight spaces.

• Inlet size options: one and a half inch or two-inch.
• Features vermin protection system.
• Easy to install and fits tight spaces.

Product Highlights

This valve is ideal for venting a single fixture or multiple bathroom setups, including back-to-back configurations. It automatically opens to allow fresh air in when negative pressure occurs, preventing odors from entering living spaces.

Product Information

Standard Information

• Manufacturer: Studor
• UPC: 76465120346
• UNSPSC: 40141600

Technical Specifications

• Inlet Size: 1-1/2 inch or 2 inch
• Connection Type: Male threaded
• Body Material: PVC
• Media Handled: Air
• Capacity: 20 DFU
• Applicable Standards: ETL, ANSI/ASSE 1050, ANSI/ASSE 1051, IAPMO, ICC-ES PMG, NSF 14, IPC, IRC, UPC
