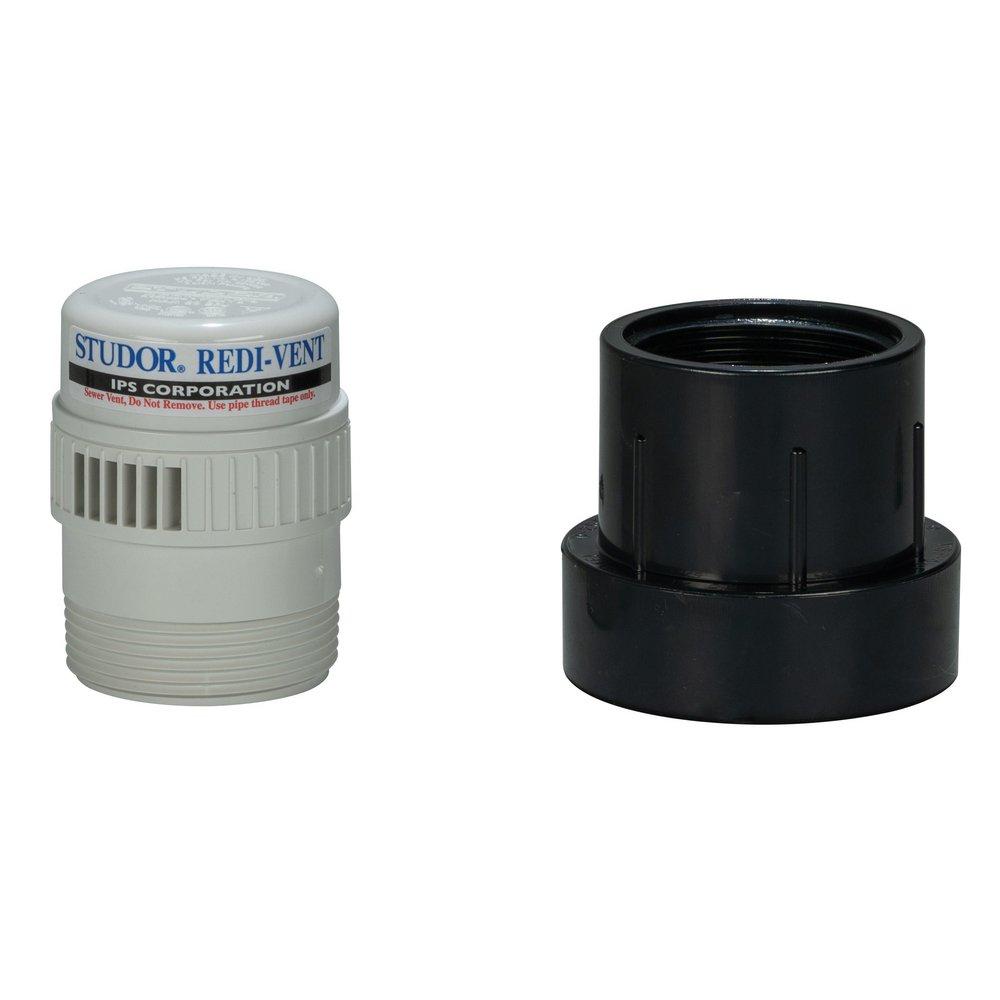

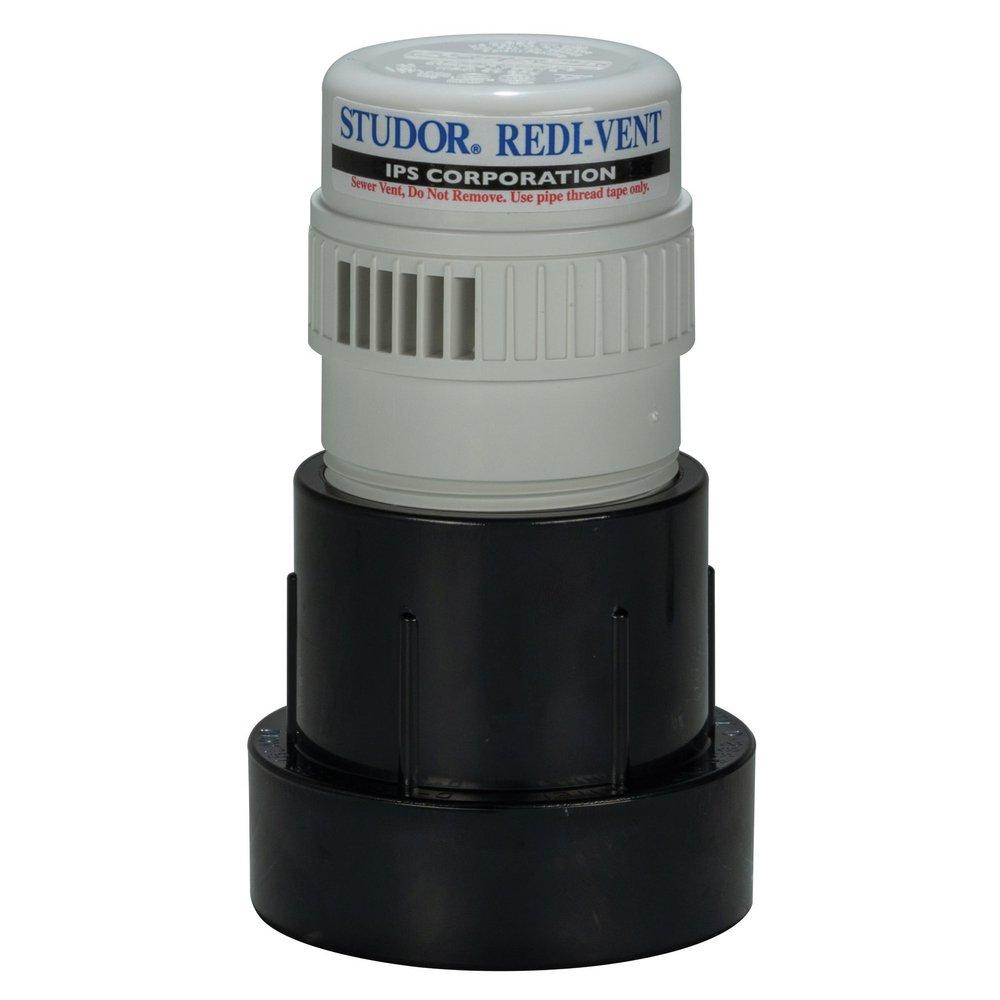

STUDOR 20298 Redi-Vent 1-1/2 - 2 in. 20 dfu ABS Air Vent

Product Description

The STUDOR Redi-Vent 20298 is an air vent designed for plumbing applications. This product effectively creates ventilation that prevents the loss of water seal in traps. It uses gravity to automatically close its seal, which helps stop unpleasant odors from circulating in bathrooms or drains. Additionally, this air vent features an exclusive vermin protection system to keep out bugs and foreign objects.

• Compatible with both 1-1/2 inch and 2 inch piping
• Suitable for residential or commercial use
• Temperature rating of -40°F to 150°F

Product Highlights

This air admittance valve is compact and suitable for use with a single fixture or a group of fixtures up to twenty drain fixture units (DFUs) on a branch. Complies with multiple industry standards including ANSI/ASSE 1050 and 1051.

Product Information

Standard Information

• Brand: STUDOR
• MPN: 20298
• Catalog Number: 20298
• Unit of Measure: Each

Technical Specifications

• UPC: 76465120298
• Weight: 0.13 lbs
• Compliance Standards: ANSI/ASSE 1050, ANSI/ASSE 1051, NSF 14
• Temperature Range: -40°F to 150°F
• Vermin Protection: Yes
• Installation Versatility: Single fixture or groups up to 20 DFUs
