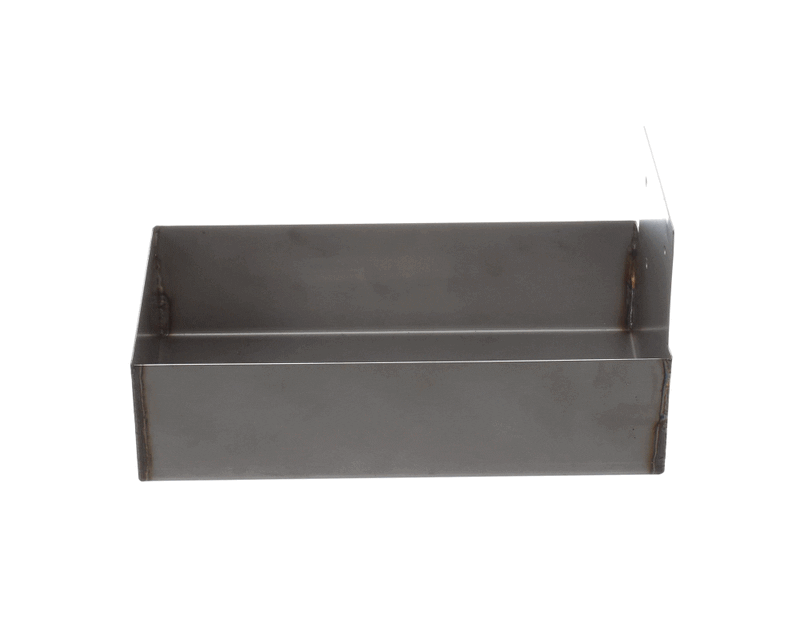

Structural Concepts 21-16615 Evaporator Pan

Product Description

The STRUCTURAL CONCEPTS 21-16615 is a replacement evaporator pan designed for commercial refrigeration equipment. The evaporator pan sits beneath the evaporator coil assembly and collects condensate formed during the cooling cycle, directing moisture away from the refrigerated compartment and toward the drain system. This component is a direct OEM-style replacement part intended for use by commercial refrigeration technicians and qualified service professionals maintaining STRUCTURAL CONCEPTS display cases and refrigerated merchandising units.

This evaporator pan is suited for commercial refrigeration applications, including open and closed display cases commonly found in grocery, deli, and foodservice environments. It is a service replacement part typically installed during scheduled maintenance or when the original pan shows signs of cracking, corrosion, or drain blockage that compromises condensate management within the unit.

Key Features

• OEM replacement part sourced directly from STRUCTURAL CONCEPTS
• Designed to collect and channel condensate from the evaporator coil
• Intended for commercial refrigeration display case applications
• Direct fit replacement simplifies serviceability

Compatibility

Designed as an OEM-style replacement evaporator pan for STRUCTURAL CONCEPTS commercial refrigeration display cases and merchandising equipment.

Installation Notes

Installation should be performed by a qualified commercial refrigeration technician. Before servicing, power down the unit and allow residual refrigerant pressure to stabilize per standard lockout/tagout procedures. Ensure the drain line is clear and properly seated when reinstalling the pan to prevent condensate overflow. Verify the pan is fully secured and level within the evaporator compartment before returning the unit to service.

Technical Specifications

• Part Type: Evaporator Pan

Standard Information

• Brand: STRUCTURAL CONCEPTS
• Manufacturer Part Number: 21-16615
