Stromquist CCP-N01G-201606-120V-024V-0100VA-001-001 Basic CP w/Terminals & 100VA Trans

Product Description

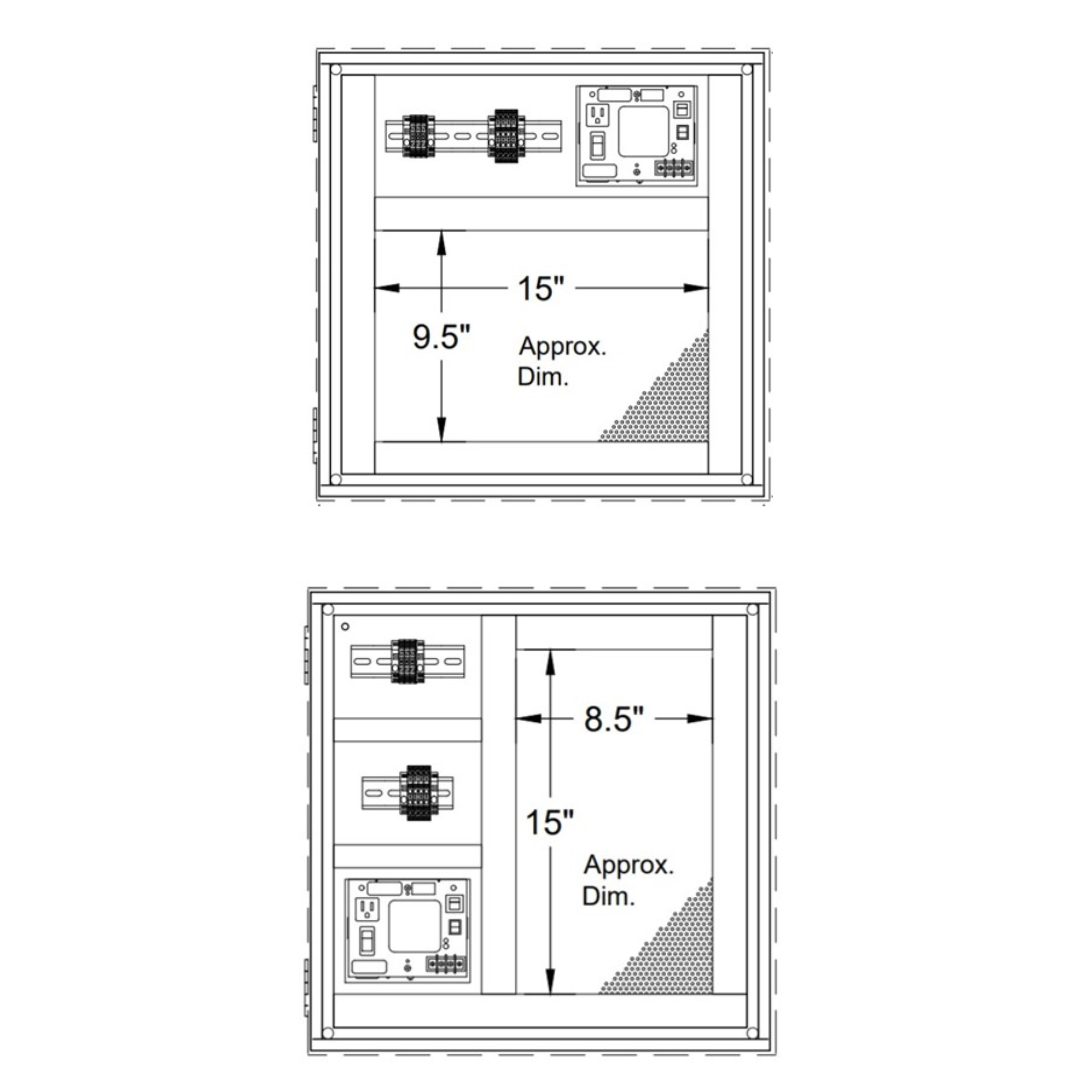

The Stromquist CCP-N01G-201606-120V-024V-0100VA-001-001 basic CP with terminals and 100VA transformer is a great way to jump-start your control projects. It features pre-wired and pre-mounted terminals, a transformer, and wire-duct. Multiple layouts are available, saving time and resources. Our Engineered Solutions team can help with custom needs.

• NEMA 1 enclosure
• Perforated back plate
• 100VA 24VAC transformer with circuit breaker and convenience outlet

Product Highlights

This 24-volt commercial control panel features a 24VAC power distribution block with insulation displacement connections and 120VAC incoming power terminals pre-wired to transformer primary.

Product Information

Standard Information

• Brand: STROMQUIST
• Manufacturer Part Number: CCP-N01G-201606-120V-024V-0100VA-001-001
• Country of Origin: Unknown

Technical Specifications

• MFR #: CCP-N01G-162006-120V-024V-0100VA-001-001
• Depth: 6
• Height: 20
• Voltage: 120V to 24V
• Width: 16
• Enclosure Series: Saginaw
• Layout: Horizontal
