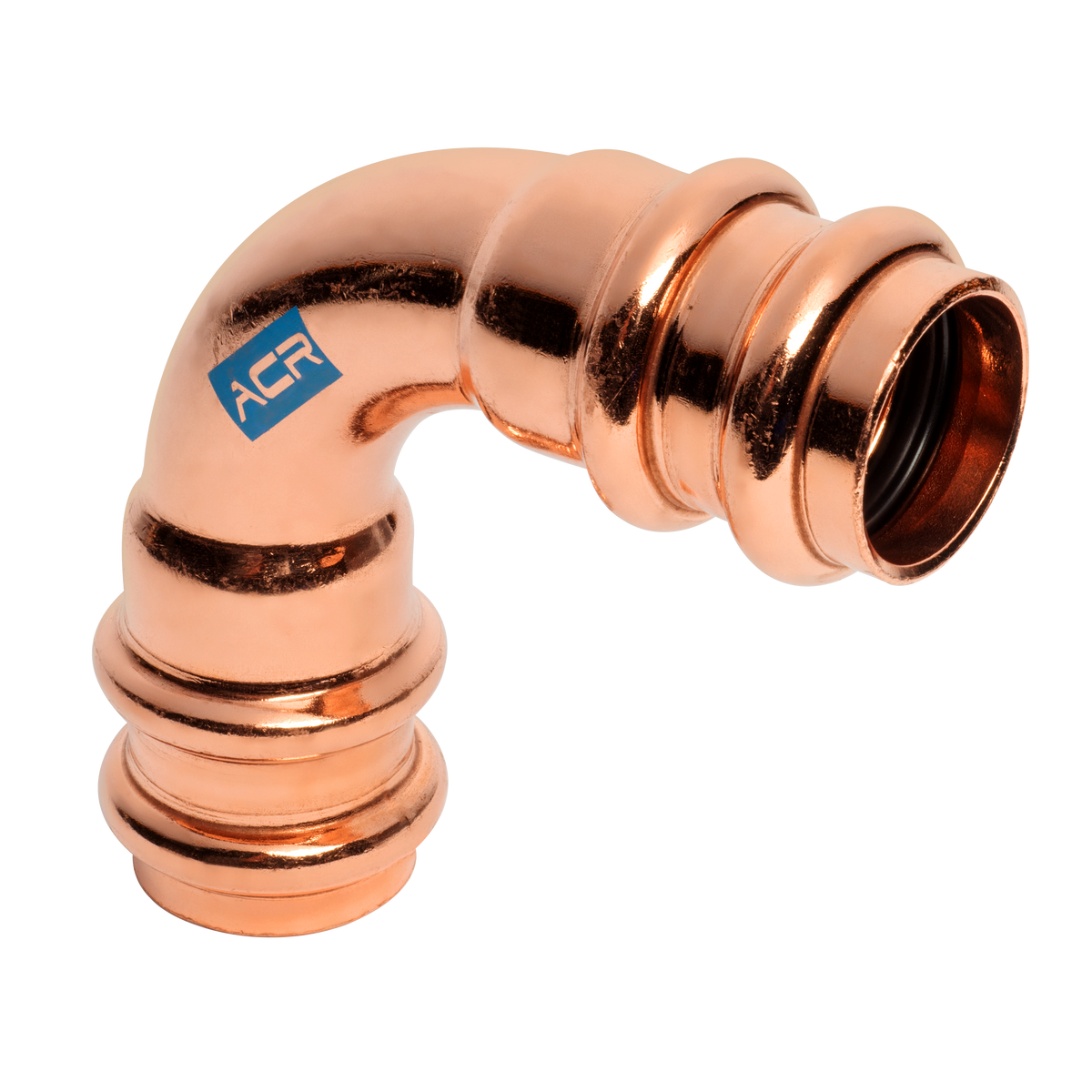

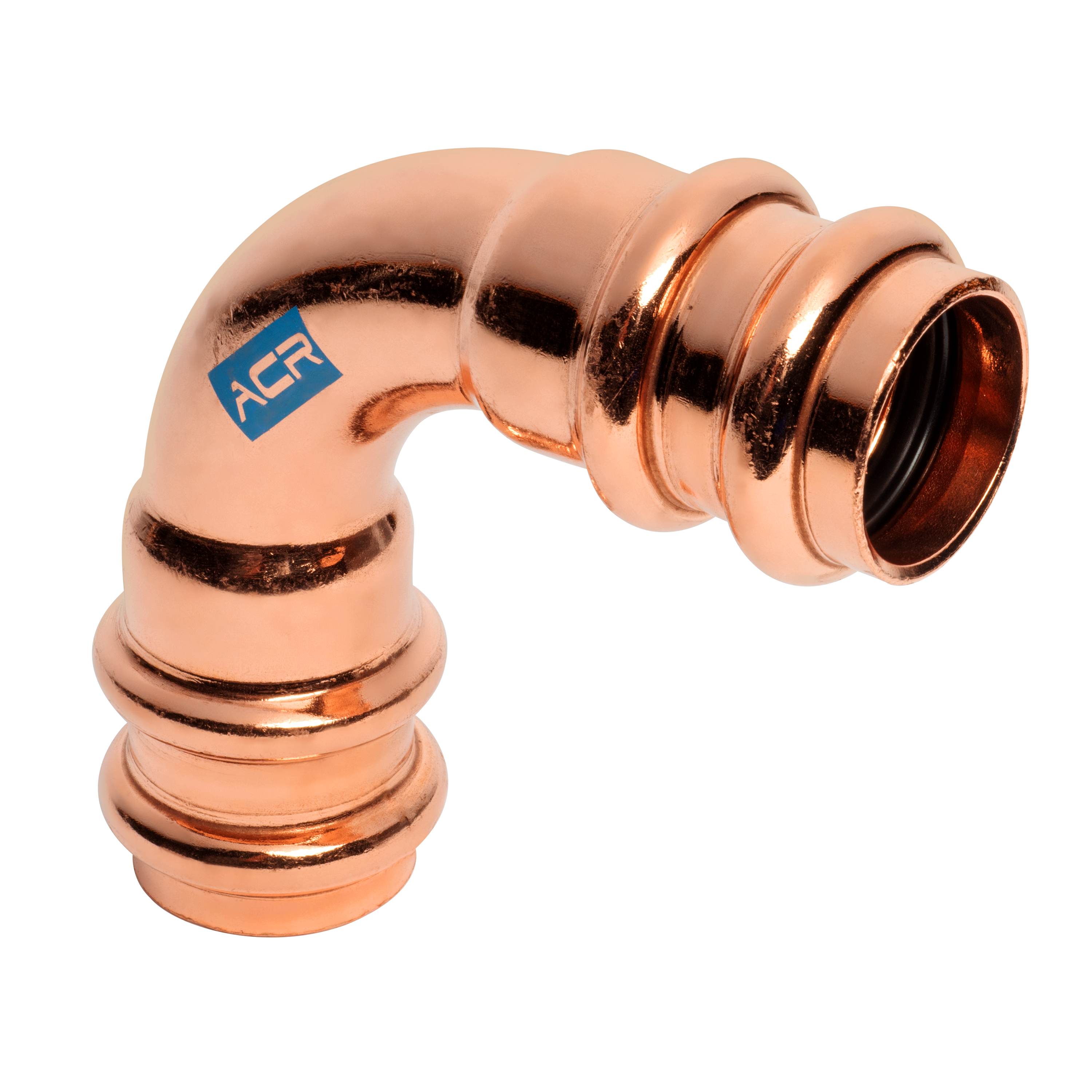

STREAMLINE RP02734 7/8 ACR Copper Press 90 Degree Elbow

Product Description

The STREAMLINE RP02734 is a 7/8 ACR copper press 90 degree elbow designed for HVACR applications. It utilizes T.R.A.P. technology, featuring a DualSeal ring design for enhanced sealing capabilities and joint strength.

• Features DualSeal ring design for effective sealing.
• Compatible with R410A and other refrigerant gases.
• Suitable for Use with Type ACR, L, and K copper tube.

Product Highlights

The STREAMLINE RP02734 elbow provides reliability and durability in copper plumbing systems.

Product Information

Standard Information

• Manufacturer Part Number: RP02734
• Material: Copper

Technical Specifications

• End Type: ACR Press
• End Size: 7/8 inches
• Operating Temperature Min: -40 degrees F
• Operating Temperature Max: 250 degrees F
• Overall Length: 3.07 inches
• Overall Height: 3.07 inches
• Overall Width: 1.26 inches
• Weight: 0.27 lb
• Operating Pressure Max: 700 psi
• Technology: T.R.A.P. Technology
