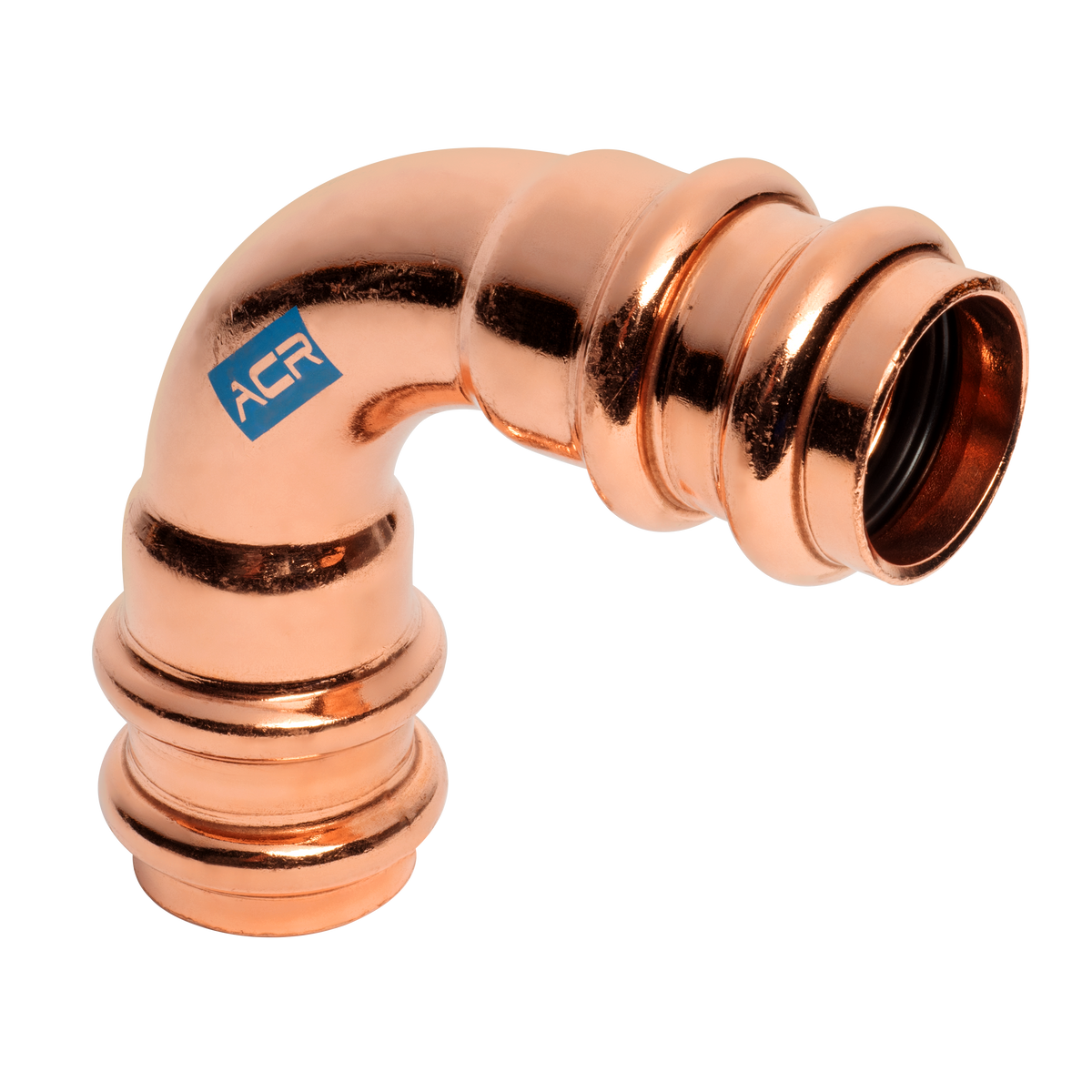

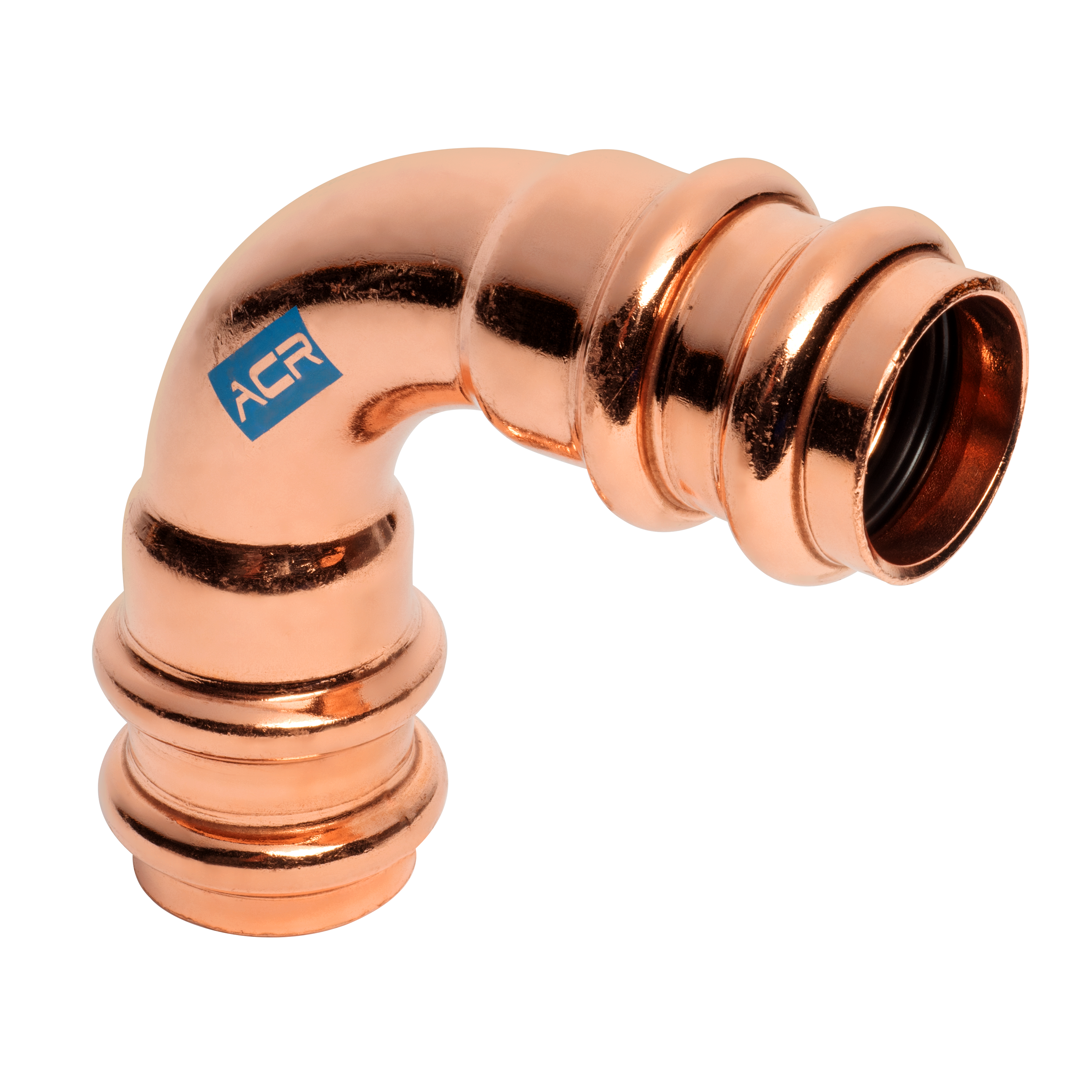

STREAMLINE RP02716 ACR 90 Degree Elbow P X P

Product Description

The STREAMLINE RP02716 is an ACR 90-degree elbow for connecting copper tubes effectively. It uses ACR Press technology, ensuring solid and reliable joints. This fitting works with Type ACR, L, and K hard and soft copper tubes. It is compatible with standard press tools and enhances joint strength and pressure resilience.

• Approved for use with Type ACR, L, K hard and soft copper tube.
• Features Two Ring Advanced Press (T.R.A.P.) Technology.
• Compatible with leading full-size press tools.

Product Highlights

Ideal for HVAC and plumbing applications, the STREAMLINE RP02716 provides efficiency in connecting copper tubing.

Product Information

Standard Information

• Brand: STREAMLINE
• MPN: RP02716

Technical Specifications

• Material: Copper
• End Type: ACR Press
• End Size: 3/8 inches
• Second End Type: ACR Press
• Second End Size: 3/8 inches
• Overall Length: 2.11 inches
• Overall Height: 2.11 inches
• Overall Width: 0.63 inches
• Dimension X: 0.75 inches
• Operating Temperature [Min]: -40 °F
• Operating Temperature [Max]: 250 °F
• Operating Pressure [Max]: 700 psi
