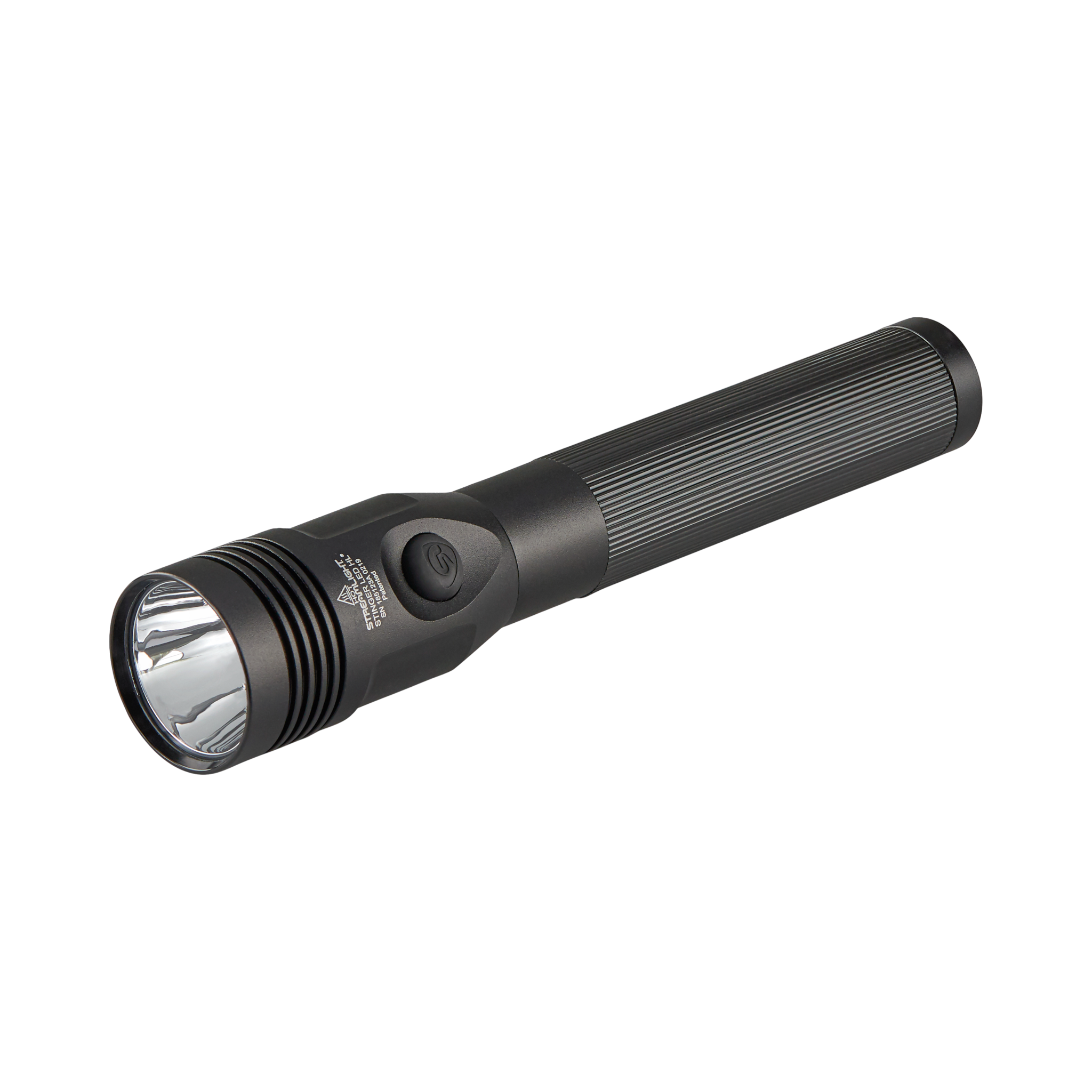

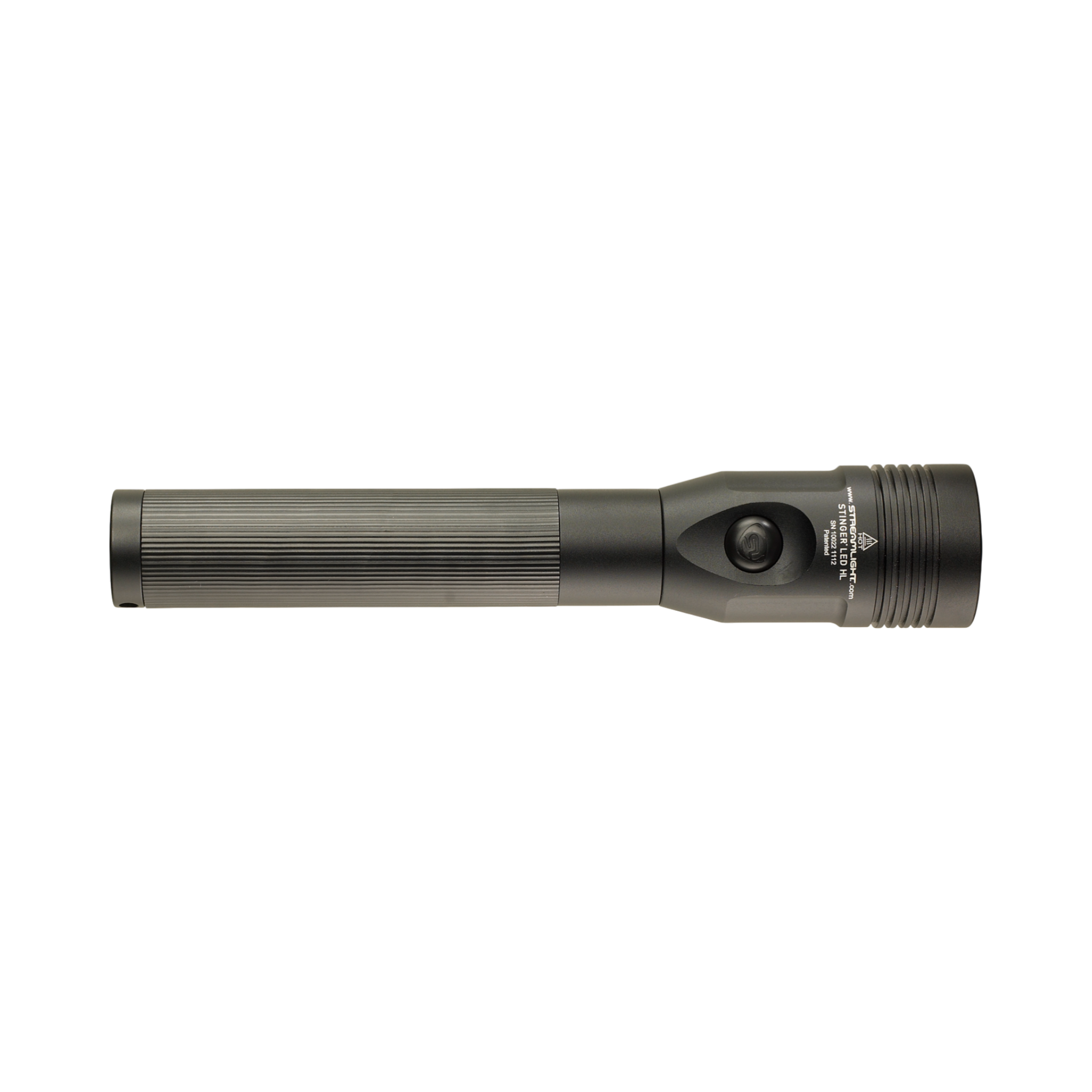

The Streamlight 75431 Stinger LED HL is a rechargeable handheld flashlight that includes a 120V AC smart charger and a NiMH rechargeable battery. It produces up to 800 lumens with selectable High/Medium/Low and Strobe modes, regulated output for consistent runtime, and a wide flood-beam pattern for area illumination. Typical applications include inspection, search, and general-purpose illumination. Unit dimensions are 8.75 x 5.375 x 4.125 inches and weight is 2.25 lb.
High-power C4 LED output up to 800 lumens with High/Medium/Low/Strobe modes and regulated runtime (High: ~1.5 hr, Medium: ~2.5 hr, Low: ~5 hr)
Rechargeable 3-cell Ni-MH battery (3.6 V) with included 120V AC smart charger; smart charge time ~3 to 4.5 hours
Machined aircraft-aluminum body with non-slip rubberized grip, unbreakable polycarbonate lens, IPX4 water resistance and 1-meter impact tested
Product Highlights
800 lm max output; 3.6 V Ni-MH rechargeable battery; 120V AC smart charger; IPX4 water resistant.
Product Information
Standard Information
Brand: STREAMLIGHT
Manufacturer Part Number: 75431
Country of Origin: Engineered in the US; manufactured in China
Technical Specifications
Brand
Streamlight
Manufacturer Part Number (MPN)
75431
Product Name
Stinger LED HL
Item Type
Rechargeable Handheld Flashlight
Light Output Maximum
800 lumens
Light Output (High/Medium/Low/Strobe)
800 lm / 400 lm / 200 lm / Strobe
Beam Distance (High/Medium/Low)
310 m / 219 m / 155 m
Peak Candela (High/Medium/Low)
24,000 cd / 12,000 cd / 6,000 cd
Runtime (High/Medium/Low/Strobe)
1.5 hr / 2.5 hr / 5 hr / 3 hr
Lamp Type
High power white LED (C4 LED technology)
Power Source
Rechargeable battery (3-cell Ni-MH sub-C)
Battery Type
Proprietary Ni-MH rechargeable, 3.6 V
Battery Recharge Cycles
Up to ~1,000 cycles
Charging
Included 120V AC smart charger; smart charge time ~3 to 4.5 hours
Wattage
Approximately 5.33 watts
Material / Body
Anodized 6000-series machined aircraft aluminum with rubberized comfort grip
Lens
Unbreakable polycarbonate with scratch-resistant coating
Reflector
Deep-dish parabolic reflector for concentrated beam with peripheral illumination
Water Resistance
IPX4
Impact Resistance
Tested to 1 meter
Serialized
Yes
Dimensions (L x W x H)
8.75 x 5.375 x 4.125 inches
Weight
2.25 lb

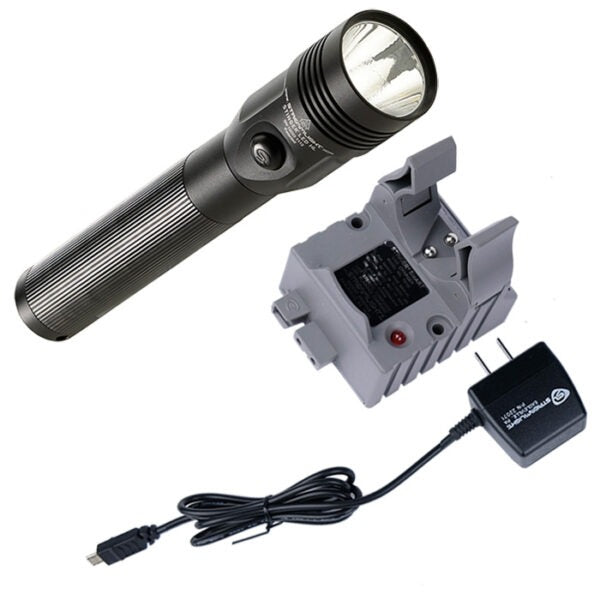

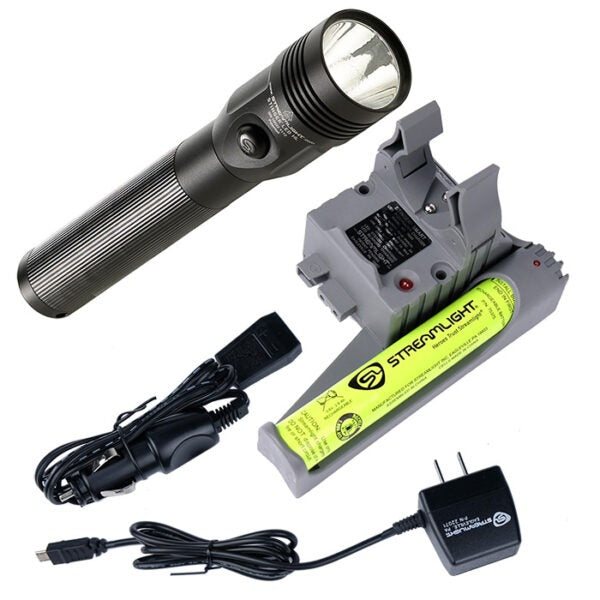

Included Components
Flashlight, Ni-MH rechargeable battery, 120V AC smart charger, anti-roll ring
