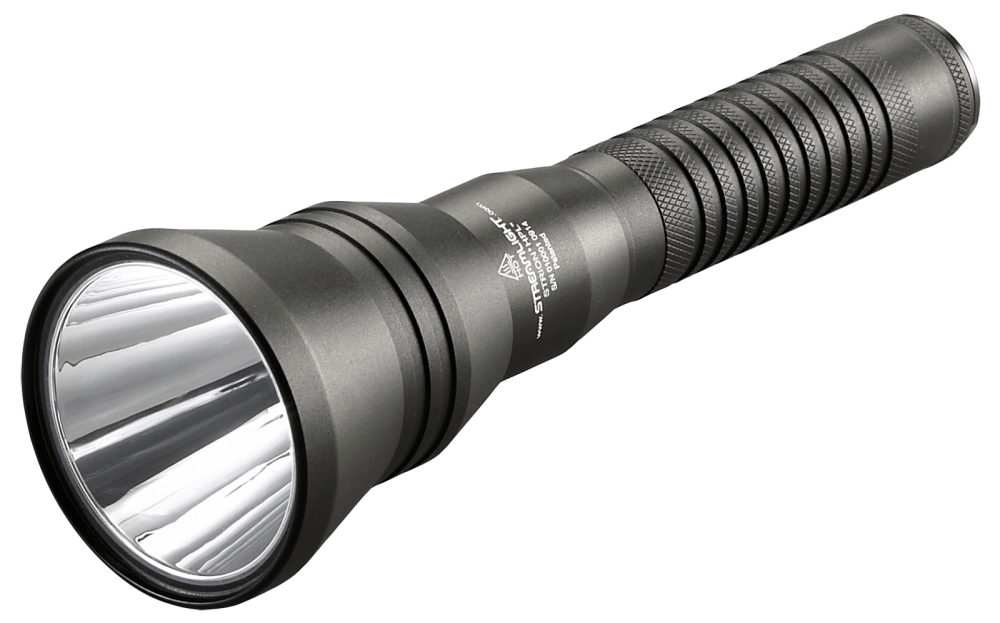

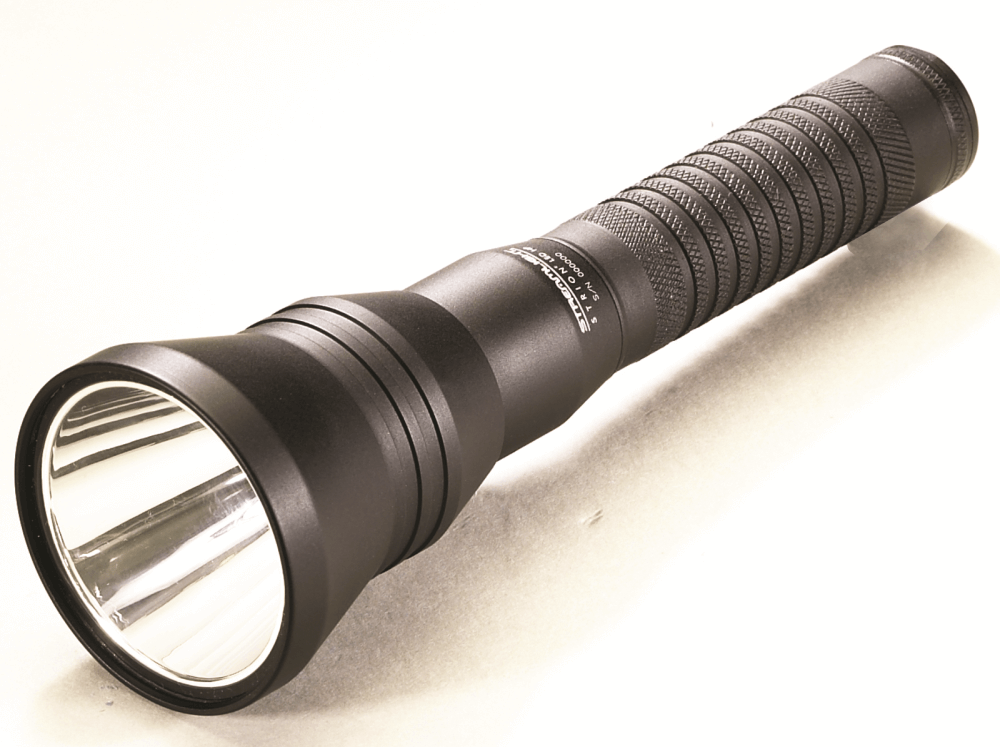

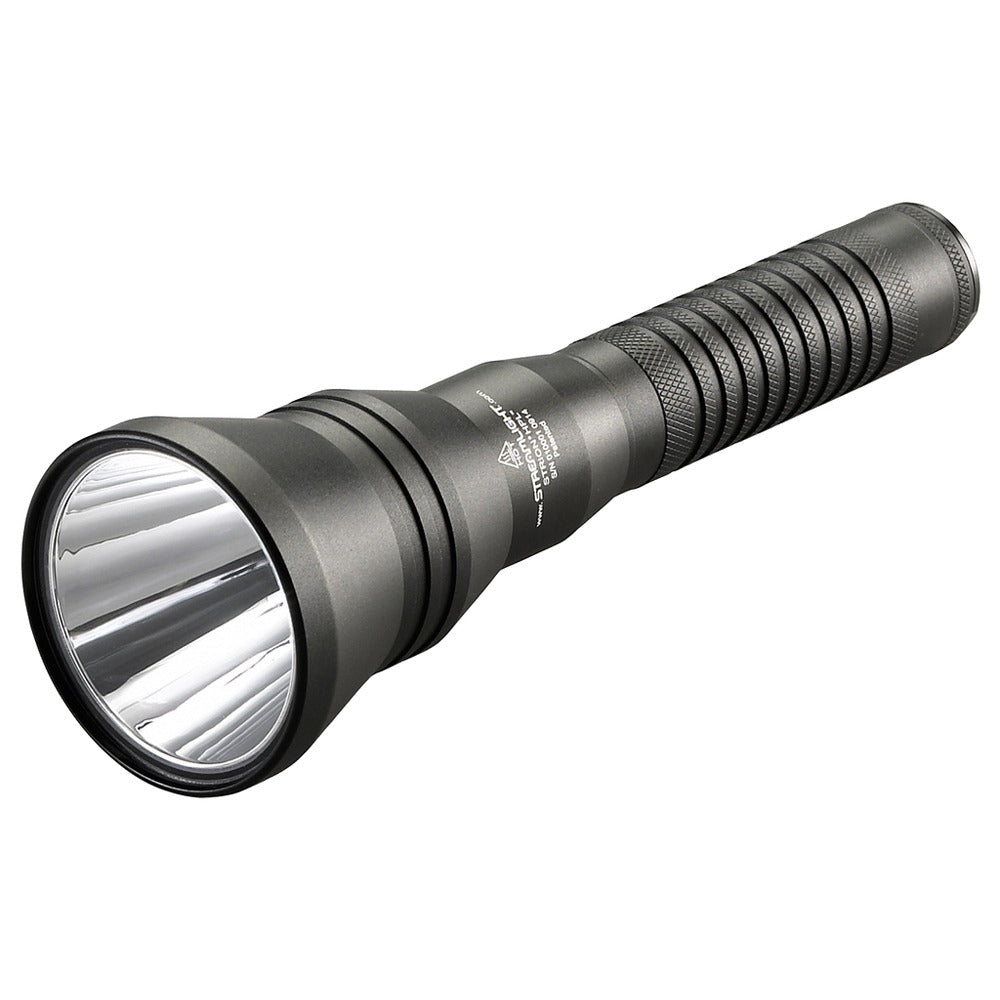

Streamlight 74504 is a Strion LED HP handheld rechargeable flashlight with 12V DC capability. It provides multi-level C4 LED output for long-range targeting and improved peripheral illumination, and uses a single rechargeable lithium-ion pack charged via a 12V DC clamp-style charger or micro-USB power input. The unit is machined from 6000-series aircraft aluminum with a scratch-resistant polycarbonate lens and meets IPX4 water resistance and 2 meter impact testing.
Multi-level C4 LED output: High 615 lumens, Medium 320 lumens, Low 160 lumens; deep-dish parabolic reflector for extended beam distance.

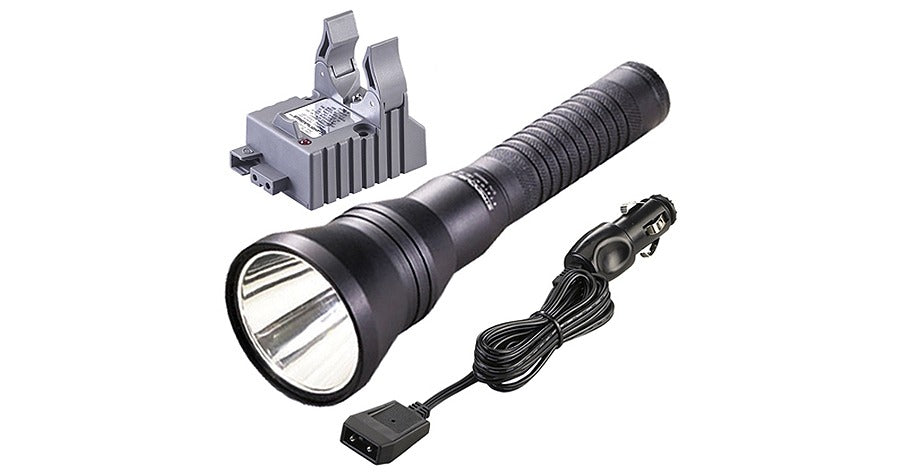

Rechargeable lithium-ion battery with 12V DC clamp-style charger (digital control and LED status); micro-USB power-in only; full recharge in about 3 hours.
Durable construction: 6000-series machined aircraft aluminum body, unbreakable polycarbonate lens with scratch-resistant coating, IPX4 water-resistant, 2 m impact rated.
Product Highlights
615 lumens peak C4 LED; rechargeable lithium-ion with 12V DC clamp charger; IPX4 water-resistant, 2 m impact rated.
Product Information
Standard Information
Brand: STREAMLIGHT
Manufacturer Part Number: 74504
Country of Origin: United States
Technical Specifications
Brand
Streamlight
MPN
74504
Model
Strion LED HP
Series
74000 Series
Category
Handheld rechargeable flashlight
Input Voltage
12V DC
Charger Type
12V DC clamp-style charger with digital control and LED charge indicator
USB
Integrated micro-USB interface (power input only)
Lamp Technology
C4 LED
Maximum Output (High)
615 lumens
Medium Output
320 lumens
Low Output
160 lumens
Beam Distance (High)
400 meters
Beam Distance (Medium)
283 meters
Beam Distance (Low)
200 meters
Peak Beam Intensity (High)
40,000 candela
Peak Beam Intensity (Medium)
20,000 candela
Peak Beam Intensity (Low)
10,000 candela
Run Time (High)
1 hour
Run Time (Medium)
2 hours
Run Time (Low)
3.75 hours
Strobe Run Time
2.5 hours

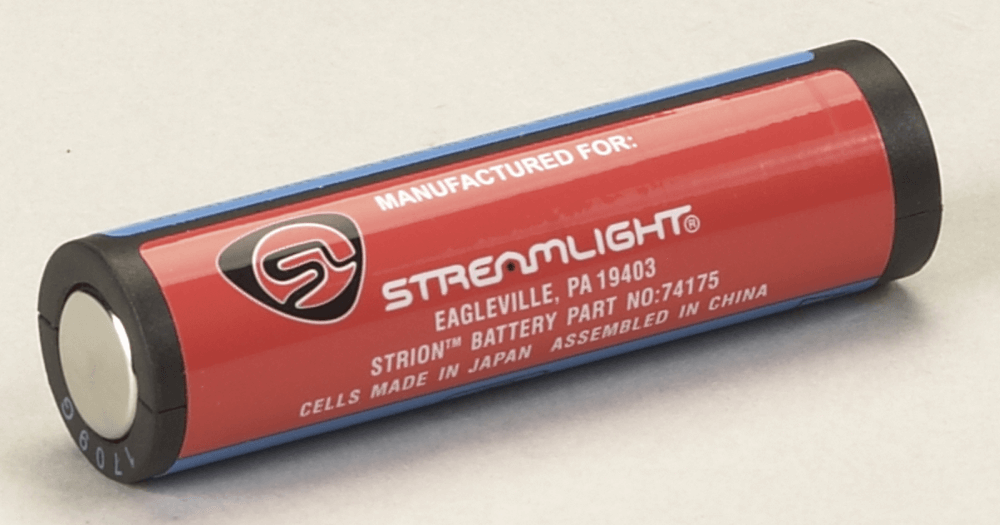

Battery Type
Rechargeable lithium-ion pack (included)
Recharge Cycles
Up to 1,000 charge cycles
Full Recharge Time
Approximately 3 hours
Water Resistance
IPX4
Impact Resistance
2 meter tested
Body Material
6000 series machined aircraft aluminum, anodized finish
Lens
Unbreakable polycarbonate with scratch-resistant coating
