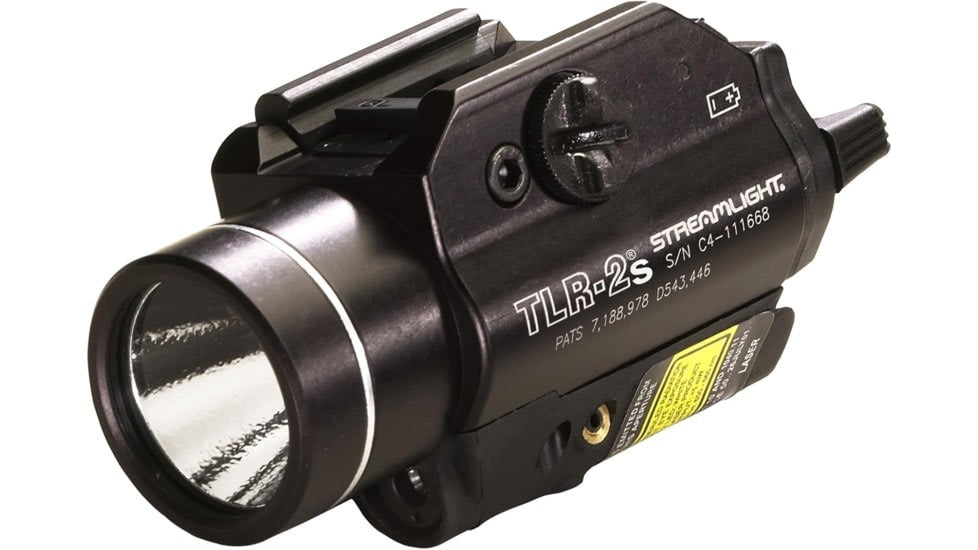

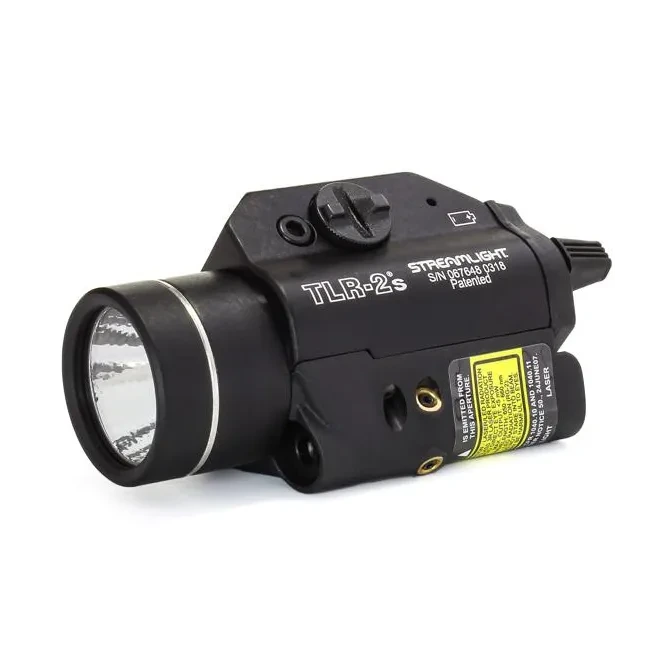

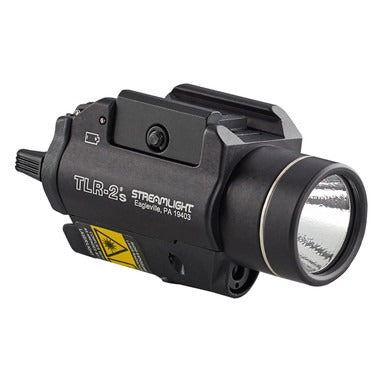

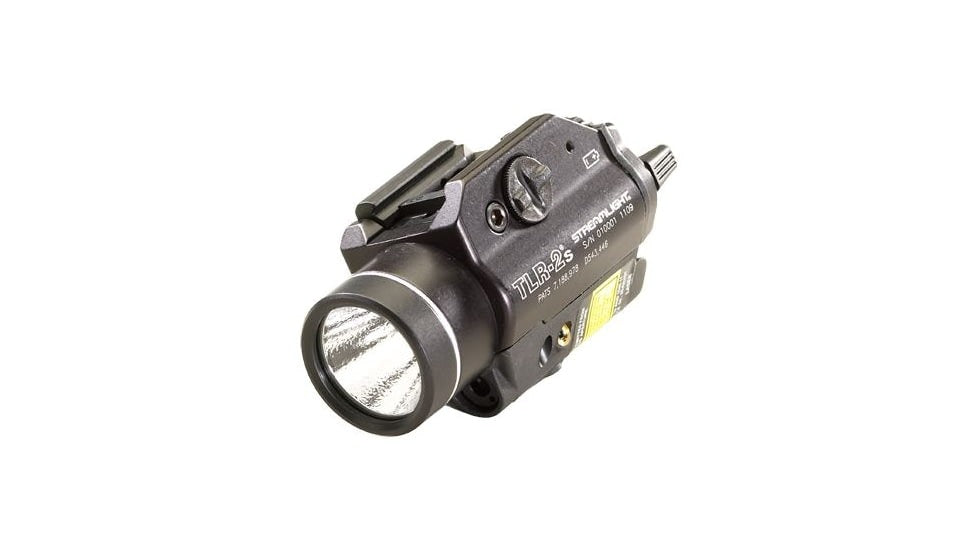

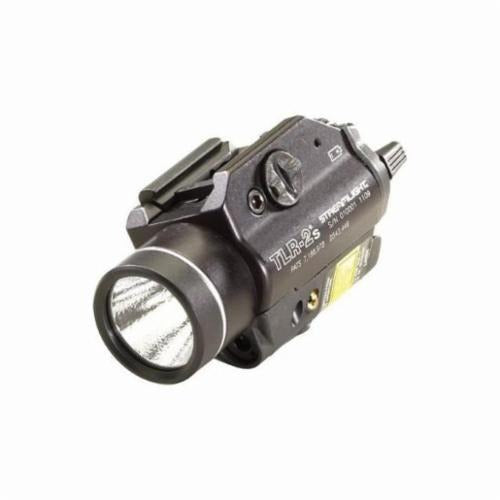

The Streamlight 69230 TLR-2s is a rail-mounted tactical weapon light with an integrated red aiming laser and strobe. It delivers 300 lumens from a C4 LED, includes windage and elevation adjustments for the 650-660 nm laser, and runs approximately 2.5 hours in dual mode on two CR123A lithium batteries. The unit mounts to Glock-style and MIL-STD-1913 Picatinny rails and is IPX4 water resistant.
300-lumen white C4 LED output with up to 12,000 candela peak beam intensity
Integrated 650-660 nm red aiming laser with brass-bushed windage and elevation adjustments; three-position selector and user-programmable strobe
Mounts to Glock-style and Picatinny rails; machined 6000-series aircraft aluminum housing with scratch-resistant polycarbonate lens; operates -40 F to +120 F
Product Highlights
Rail-mounted 300-lumen tactical light with integrated red laser, strobe, C4 LED, CR123A power, and IPX4 water resistance.
Product Information
Standard Information
Brand: STREAMLIGHT
Manufacturer Part Number: 69230
Country of Origin: United States
Technical Specifications
Brand
Streamlight
MPN
69230
Model
TLR-2s
Product Type
Rail-mounted tactical weapon light with integrated red aiming laser
Output (White Light)
300 lumens
Peak Beam Intensity
Up to 12,000 candela
Laser Wavelength
650-660 nm (red)
LED Technology
C4 LED (50,000 hour lifetime)
Run Time (Dual Mode: Light + Laser)
At least 2.5 hours
Battery Type
CR123A lithium
Number Of Batteries
2
Batteries Included
Yes, two CR123A (per source)
Voltage Rating
6 VDC (2 Ã CR123A; each CR123A = 3 VDC)
Mounting Compatibility
Glock-style rails and MIL-STD-1913 Picatinny rails
