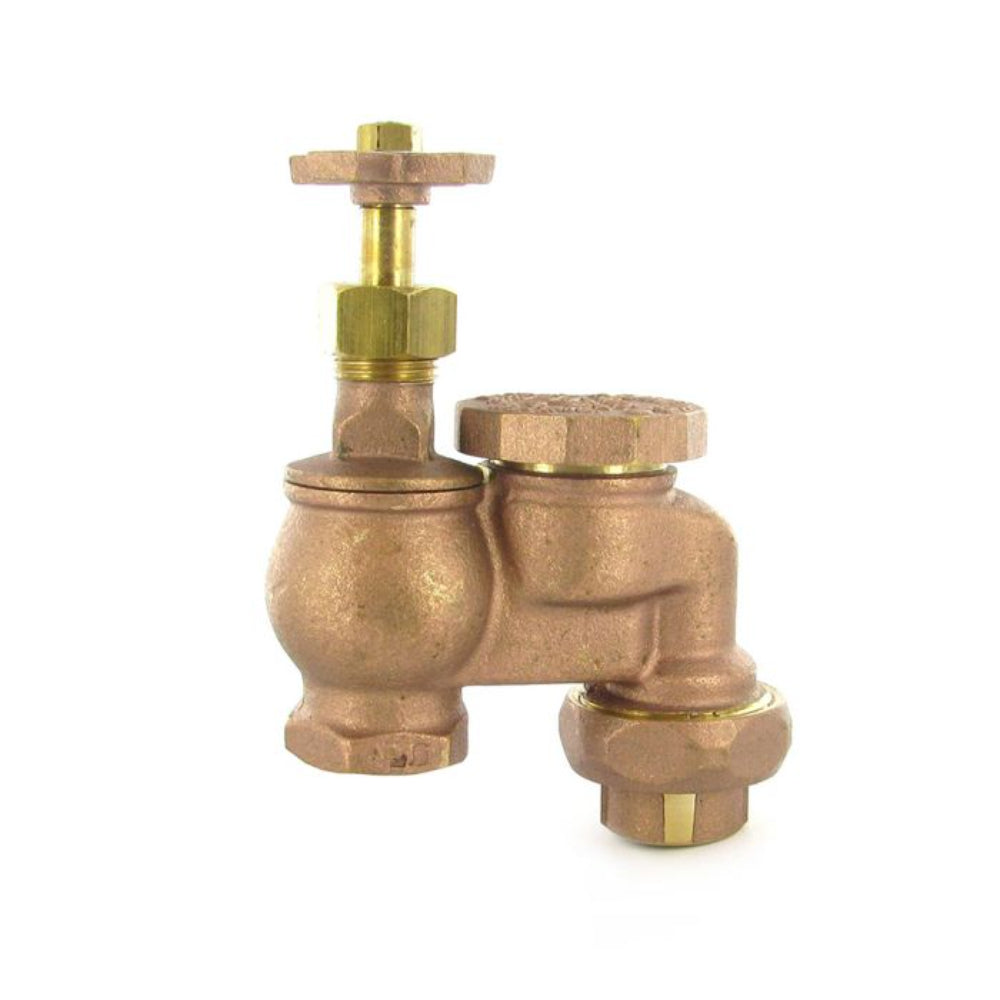

Storm ASVU07Y Brass Anti-siphon Valve with Union 3/4 in

Product Description

The STORM ASVU07Y is a 3/4-inch brass anti-siphon valve supplied as a complete assembly with a union connection. Anti-siphon valves prevent backflow by stopping contaminated water from reversing into a potable supply line when pressure drops. This valve is constructed in brass for corrosion resistance and long service life in water distribution applications. The included union fitting simplifies installation and future serviceability without cutting into the line. It is sized at 3/4 inch, a common diameter for residential and light commercial irrigation and plumbing branch lines. Licensed plumbers and irrigation technicians are the typical installers.

The ASVU07Y is suited for outdoor irrigation systems, hose bibb supply lines, and similar applications where backflow prevention is required at the point of use. The 3/4-inch port size handles standard residential flow demands. The brass body withstands outdoor temperature cycling and the mechanical demands of periodic valve cycling. Applications include residential lawn irrigation systems, garden supply lines, and commercial landscape irrigation tie-ins where a compact, union-equipped anti-siphon device is specified.

Key Features

• Complete assembly includes the anti-siphon valve body and union fitting
• 3/4-inch port size fits standard residential and light commercial supply lines
• Brass construction provides corrosion resistance and durability
• Union connection allows removal and reinstallation without cutting pipe
• Compact design suitable for above-ground and valve-box installations

Compatibility

Designed as an OEM-style replacement or new-installation anti-siphon valve for 3/4-inch threaded plumbing and irrigation supply lines.

Installation Notes

Installation should be performed by a licensed plumber or certified irrigation technician in accordance with local plumbing codes and IPC backflow prevention requirements. Shut off the water supply and relieve line pressure before beginning work. Use thread sealant tape on all threaded connections and tighten unions to hand-tight plus firm wrench pressure without over-torquing the brass fittings. Verify proper orientation of the anti-siphon vent port — it must face upward to function correctly.

Technical Specifications

• Port Size: 3/4 inch
• Body Material: Brass
• Connection Type: Union
• Weight: 2.4 pounds
• UPC: 843687114222

Standard Information

• Brand: STORM
• Manufacturer Part Number: ASVU07Y
